Bolts Weight Chart & Calculator – Bolt Weight in Kg, mm & Inch

The Bolts Weight Chart is a critical engineering reference used for accurate material estimation, project costing, logistics planning, and bulk procurement across construction, fabrication, oil & gas, and manufacturing industries. Bolt weight directly impacts structural load calculations, transport costs, and inventory planning, making precise weight data essential for engineers and purchasing teams.

This comprehensive bolt weight chart provides bolt weights in kilograms, millimeters, and inches, helping users quickly calculate total fastener weight based on bolt diameter and length. The chart covers commonly used imperial bolt sizes ranging from ½″ to 1½″ diameter, making it suitable for structural and heavy-duty applications.

For dynamic calculations, users can also refer to a bolts weight calculator, allowing accurate conversion of piece weight into total shipment or project quantities. Together, the chart and calculator serve as a reliable reference for engineering and procurement professionals.

Bolts Weight Chart List

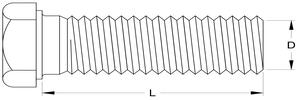

Bolt Weight Chart in mm, kg & Inch

Length	Diameter
Length	1⁄2″	5⁄8″	3⁄4″	7⁄8″	1″	11⁄8″	11⁄4″	13⁄8	11⁄2
1	16.5	29.4	47.0	–	–	–	–	–	–
11⁄4	17.8	31.3	49.6	74.4	104	–	–	–	–
11⁄2	19.2	33.1	52.2	78	109	148	197	–	–
13⁄4	20.5	35.3	55.3	81.9	114	154	205	261	333
2	21.9	37.4	58.4	86.1	119	160	212	270	344
21⁄4	23.3	39.8	61.6	90.3	124	167	220	279	355
21⁄2	24.7	41.7	64.7	94.6	130	174	229	290	366
23⁄4	26.1	43.9	67.8	98.8	135	181	237	300	379
3	27.4	46.1	70.9	103	141	188	246	310	391
31⁄4	28.8	48.2	74	107	146	195	255	321	403
31⁄2	30.2	50.4	77.1	111	151	202	263	332	416
33⁄4	31.6	52.5	80.2	116	157	209	272	342	428
4	33	54.7	83.3	120	162	216	280	353	441
41⁄4	34.3	56.9	86.4	124	168	223	289	363	453
41⁄2	35.7	59	89.5	128	173	230	298	374	465
43⁄4	37.1	61.2	92.7	133	179	237	306	384	478
5	38.5	63.3	95.8	137	184	244	315	395	490
51⁄4	39.9	65.5	98.9	141	190	251	324	405	503
51⁄2	41.2	67.7	102	146	196	258	332	416	515
53⁄4	42.6	69.8	105	150	201	265	341	426	527
6	44	71.9	108	154	207	272	349	437	540
61⁄4	–	74.1	111	158	212	279	358	447	552
61⁄2	–	76.3	114	163	218	286	367	458	565
63⁄4	–	78.5	118	167	223	293	375	468	577
7	–	80.6	121	171	229	300	384	479	589
71⁄4	–	82.8	124	175	234	307	392	489	602
71⁄2	–	84.9	127	179	240	314	401	500	614
73⁄4	–	87.1	130	183	246	321	410	510	626
8	–	89.2	133	187	251	328	418	521	639
81⁄4	–	–	–	192	257	335	427	531	651
81⁄2	–	–	–	196	262	342	435	542	664
83⁄4	–	–	–	–	–	–	444	552	676
9	–	–	–	–	–	–	453	563	689
