Titanium Grade 2 Round Bars Manufacturer, Supplier & Exporter
ASTM B348 Gr 2 Rods, Titanium 2 Bar, Titanium Alloy Gr 2 Rod, Titanium Alloy Grade 2 Round Bar, Titanium Grade 2 Rod, Titanium Gr 2 Round Bar Manufacturers in India
Jade Alloys is a leading Titanium Grade 2 Round Bar manufacturer, supplier and exporter serving the Gulf, Asia, and Europe. We control the complete supply chain from raw titanium sponge sourcing and mill certification through to precision processing, non-destructive testing, and global logistics. Our warehouse holds an extensive ready-stock of ASTM B348 Gr 2 Rods in diameters from 3 mm to 800 mm, enabling us to dispatch standard orders within 24–48 hours and fulfil large-volume project requirements for the oil & gas, chemical processing, desalination, aerospace, marine, medical, and power generation industries across the Gulf, Asia, and Europe.
As a certified Titanium Grade 2 Round Bar Exporter, to the Gulf region (UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman), Asia (Singapore, South Korea, Japan, Malaysia, India, China, Taiwan, Thailand), and Europe (Germany, Italy, Netherlands, France, Spain, UK, Poland, Scandinavia) with our materials completely traceable via Mill Test Certificates (MTC) as per EN 10204 3.1 and 3.2. Our logistics department oversees export documentation, import HS code classification and door-to-port delivery in the three key markets.
Quick Section Links
- What Are Titanium Grade 2 Round Bars?
- Titanium Grade 2 vs Titanium Grade 5 – Key Differences
- Titanium Grade 2 Round Bar Specifications
- Titanium 2 Round Bar Chemical Composition (ASTM B348)
- Titanium Gr 2 Round Bar Mechanical & Physical Properties
- Corrosion Resistance of Titanium Grade 2 Bars
- Welding Titanium Grade 2 Round Bars
- Heat Treatment of Titanium Grade 2 Bars
- Equivalent Grades for Titanium Grade 2 Round Bar
- Available Sizes of Titanium Grade 2 Round Bar
- Dimensional Tolerances of ASTM B348 Titanium Grade 2 Round Bar
- Surface Finishes Available for Titanium Grade 2 Round Bar
- Testing, Inspection & Quality Compliance
- Applications of Titanium Grade 2 Round Bars
- Titanium Grade 2 Round Bar Price in India
- Why Choose Jade Special Metals for Titanium Grade 2 Round Bars?
- Related Products
- Frequently Asked Questions – Titanium Grade 2 Round Bars

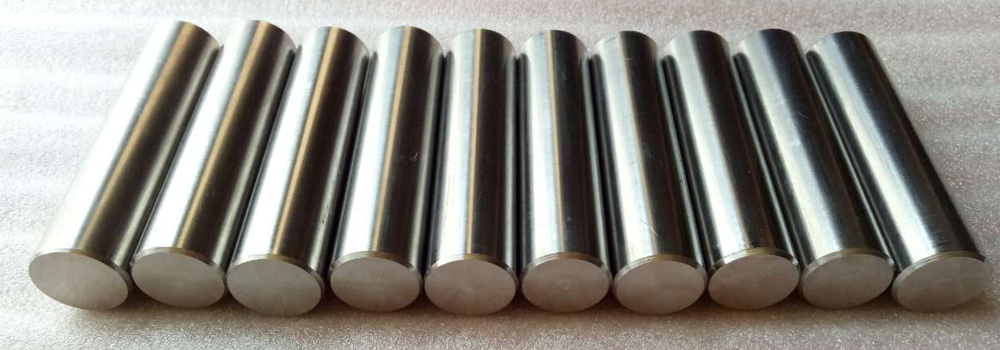

What Are Titanium Grade 2 Round Bars?
Titanium Grade 2 Round Bars are manufactured from commercially pure (CP) titanium containing a minimum of 99% titanium. The alloy designation ‘CP2’ (also written Titanium Gr 2, UNS R50400, or Werkstoff Nr. 3.7035) represents the most widely used CP titanium grade owing to an excellent balance of moderate strength, outstanding cold-workability, and superior corrosion resistance in a broad range of aggressive media.
Within the CP titanium family, Grade 2 occupies the mid-range stronger than Grade 1 (R50250) yet easier to form than Grades 3 and 4. The key interstitial elements that govern its properties are oxygen (max 0.25 wt.%) and nitrogen (max 0.03 wt.%). A higher oxygen content increases strength but reduces ductility; Grade 2 is deliberately specified at a controlled oxygen ceiling to deliver both adequate yield strength and the ductility required for complex machining, cold-forming, and orbital welding.
Bars are produced to ASTM B348 / ASME SB348 and may additionally conform to AMS 4902, AMS 4921, AMS-T-9046, MIL-T-81556, and ASTM F67 as applicable to end-use industry.
Titanium Grade 2 vs Titanium Grade 5 – Key Differences
Procurement teams in the aerospace and chemical industries frequently face the choice between Titanium Grade 2 (CP) and Titanium Grade 5 (Ti-6Al-4V). The table below summarises the critical technical distinctions:
| Property | Titanium Grade 2 (CP2) | Titanium Grade 5 (Ti-6Al-4V) |
|---|---|---|
| Alloy type | Commercially pure (α) | α-β alloy |
| UNS | R50400 | R56400 |
| Min. tensile strength | 345 MPa (50 ksi) | 895 MPa (130 ksi) |
| Min. yield strength | 275 MPa (40 ksi) | 828 MPa (120 ksi) |
| Density | 4.51 g/cm³ | 4.43 g/cm³ |
| Corrosion resistance | Excellent (esp. oxidising/chloride) | Good – lower than Gr 2 in HNO₃ |
| Cold formability | Excellent | Limited – hot forming preferred |
| Weldability | Excellent – all fusion methods | Good – requires post-weld heat treat |
| Biocompatibility | ASTM F67 – implant grade | ASTM F136 – implant grade |
| Typical applications | Chemical, marine, desalination | Aerospace structural, high-stress parts |
| Relative cost | Lower | Higher (~2.5× Gr 2) |
Use Titanium Grade 2 where maximum corrosion resistance, ease of fabrication and cost efficiency are priorities. Specify Titanium Grade 5 Round Bars where structural strength and fatigue resistance are the overriding requirements.
Titanium Grade 2 Round Bar Specifications
| Parameter | Details |
|---|---|
| Standard | ASTM B348 / ASME SB348 |
| Other applicable standards | AMS 4902, AMS 4921, AMS-T-9046, ASTM F67(Gr2), MIL-T-81556, SAE J467(A40), NACE MR0175/ISO 15156 |
| Round bar diameter | 3 mm – 800 mm (custom >800 mm on enquiry) |
| Standard lengths | 2,000 mm – 6,000 mm; cut-to-size on request (tol. +2/−0 mm) |
| Hex bar size (A/F) | 2 mm – 100 mm |
| Flat bar | Thickness: 2–100 mm; Width: 10–500 mm |
| Square bar | 4 mm – 100 mm |
| Hollow bar | 32 mm OD × 16 mm ID to 250 mm OD × 200 mm ID |
| Billet diameter | ½ in – 495 mm |
| Tolerance class | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or per client spec |
| Surface finish | Black (hot rolled), bright polished, rough turned/peeled, centreless ground, cold drawn, HRAP |
| Condition | Annealed, hardened & tempered |
| Processing route | Hot rolled, cold drawn, cold rolled, forged |
| Dimensions reference | EN, DIN, JIS, ASTM, BS, ASME, AISI |
“Contact Jade Special Metals today with your requirement for Titanium Gr 2 Round Bars and Titanium Alloy Gr 2 Rods. We assure you of the best quote.
Titanium 2 Round Bar Chemical Composition (ASTM B348)
| Element | C (max) | N (max) | O (max) | H (max) | Fe (max) |
|---|---|---|---|---|---|
| wt. % | 0.10 | 0.03 | 0.25 | 0.015 | 0.30 |
Titanium balance (remainder): ~99.2 wt.% minimum. Oxygen and iron are the primary strengthening interstitials; both ceilings are tightly controlled to guarantee consistent weld quality and formability from bar to bar
Titanium Gr 2 Round Bar Mechanical & Physical Properties
| Min. Tensile Strength | Min. Yield Strength | Elongation | Tensile Modulus | Poisson’s Ratio |
|---|---|---|---|---|
| 345 MPa (50 ksi) | 275 MPa (40 ksi) | ≥20 % | 103 GPa | 0.34 |
Additional Physical Properties of Titanium Grade 2 Rod
| Property | Value |
|---|---|
| Density | 4.51 g/cm³ |
| Melting point | 1,668 °C (3,034 °F) |
| Thermal conductivity | 17 W/(m·K) at 20 °C |
| Specific heat capacity | 520 J/(kg·K) |
| Coefficient of thermal expansion | 8.9 × 10⁻⁶ /°C (20–100 °C) |
| Electrical resistivity | 0.55 µΩ·m |
| Hardness (Brinell) | ~149 HB |
| Modulus of elasticity (shear) | 45 GPa |
Corrosion Resistance of Titanium Grade 2 Bars
Titanium Grade 2 Round Bars derive their corrosion resistance from a stable, self-regenerating TiO₂ (titanium dioxide) passive film that forms instantly on any fresh metallic surface exposed to air or moisture. This mechanism provides protection across a very wide pH range and in many aggressive media where stainless steels and nickel alloys fail.
Performance in Specific Media
| Environment / Media | Resistance | Notes |
|---|---|---|
| Seawater & brackish water | Excellent | No pitting; preferred for offshore hardware |
| Oxidising acids (HNO₃, aqua regia) | Excellent | Resists attack up to concentrated HNO₃ |
| Chloride solutions | Excellent | Passive film stable up to ~260 °C in chlorides |
| Hydrochloric acid (HCl) | Poor at high conc. & temp. | Add inhibitor; consider Gr 7 (Pd-doped) for HCl service |
| Sulphuric acid (H₂SO₄) | Fair at low conc. | Grade 7 or 12 preferred above 5% H₂SO₄ |
| Crevice corrosion | Good | Susceptible in concentrated hot brines above 70 °C; design for flow |
| Hydrogen embrittlement | Low risk – good | Avoid cathodic protection coupling below −0.7 V SCE |
| Organic acids (acetic, citric) | Excellent | Widely used in food-grade chemical plant |
Welding Titanium Grade 2 Round Bars
Titanium Grade 2 is one of the most weldable forms of titanium. Its low interstitial content and single-phase (α) microstructure mean it does not experience the post-weld embrittlement that affects some other titanium alloys. The following guidelines are critical for sound welds:
- Shielding gas: High-purity argon (99.998% min.) or helium. Dual shield both the weld puddle and the trailing root side. Inadequate inert gas coverage results in oxide discolouration — the internationally recognised colour criterion is: silver/bright = clean; gold/yellow = marginal; blue/grey/white = reject and rework.
- Filler wire: AWS A5.16 ERTi-2 (matching grade). ERTi-1 (Gr 1) may be used for joints where dilution will raise the deposit strength sufficiently.
- Pre-weld cleaning: Degrease with acetone or isopropyl alcohol. Mechanically clean (stainless steel brush dedicated to titanium only) and wipe immediately before welding. Contamination from steel tools transfers iron, which initiates galvanic corrosion.
- Welding processes: GTAW/TIG (preferred), Plasma arc welding (PAW), Electron beam welding (EBW), Laser beam welding (LBW). MIG/GMAW is acceptable for non-critical weld repairs on thick sections using pure argon shielding.
- Post-weld heat treatment (PWHT): Generally not required for CP Grade 2. Stress-relief anneal at 480–595 °C for 1–4 hours in an inert atmosphere improves dimensional stability of complex fabrications.
- Note on dissimilar metal welding: Titanium may be electron-beam or explosion-bonded to stainless steel or copper alloys. Direct fusion welding to steel produces brittle intermetallics; always use a transition piece or clad product.
Heat Treatment of Titanium Grade 2 Bars
Because Titanium Grade 2 is an alpha-phase alloy, it cannot be strengthened by precipitation hardening or martensitic transformation. The following thermal cycles are used in manufacturing and fabrication:
| Treatment | Temperature Range | Hold Time | Purpose |
|---|---|---|---|
| Mill anneal | 700–785 °C | As required | Recrystallise after cold working; restore ductility |
| Stress relief anneal | 480–595 °C | 1–4 hrs | Reduce residual stresses post-forming/welding |
| Recrystallisation anneal | 925–955 °C (1 hr) | 1 hr | Full softening; maximum corrosion resistance |
| Vacuum anneal | 700–800 °C in vacuum | 1–3 hrs | Avoids surface oxidation on precision bars |
All heat treatment must be carried out in a vacuum or inert-gas atmosphere furnace. Titanium absorbs oxygen, nitrogen, and hydrogen above 500 °C, causing case hardening (α-case) that degrades fatigue life and toughness. Our bars undergo SCADA-controlled annealing with documented time-temperature records supplied with each MTC.
Equivalent Grades for Titanium Grade 2 Round Bar
| Standard | UNS | Werkstoff Nr. | JIS | BS |
|---|---|---|---|---|
| ASTM / ASME | R50400 | 3.7035 | TP340 / TA2 | TA2 |
Available Sizes of Titanium Grade 2 Round Bar
Standard lengths: 2,000 mm to 6,000 mm. Cut-to-size available (tolerance +2/−0 mm). Sizes listed are from stock; non-standard diameters available on 2–4 week lead time.
| 5 mm | 6 mm | 7 mm | 8 mm | 9 mm | 10 mm | 12 mm | 16 mm |
|---|---|---|---|---|---|---|---|
| 20 mm | 25 mm | 30 mm | 35 mm | 40 mm | 45 mm | 50 mm | 55 mm |
| 60 mm | 65 mm | 70 mm | 75 mm | 80 mm | 90 mm | 100 mm | 130 mm |
| 160 mm | 200 mm | 250 mm | 300 mm | 400 mm | 500 mm | 600 mm | 800 mm |
Dimensional Tolerances of ASTM B348 Titanium Grade 2 Round Bar
Hot Rolled Round Bar Tolerances
| Diameter Range (mm) | Permitted Variation (mm) |
|---|---|
| ≥ 6 to ≤ 18 | +0 / −0.070 |
| > 18 to ≤ 30 | +0 / −0.085 |
| > 30 to ≤ 50 | +0 / −0.100 |
| > 50 to ≤ 80 | +0 / −0.120 |
| > 80 to ≤ 100 | +0 / −0.140 |
Turned / Precision Ground Bar Tolerances (BS 970-3)
| Diameter Range (mm) | Permitted Variation (mm) |
|---|---|
| ≥ 6 to ≤ 18 | +0 / −0.070 |
| > 18 to ≤ 30 | +0 / −0.085 |
| > 30 to ≤ 50 | +0 / −0.100 |
| > 50 to ≤ 80 | +0 / −0.120 |
| > 80 to ≤ 120 | +0 / −0.140 |
| > 120 to ≤ 180 | +0 / −0.160 |
| > 180 to ≤ 250 | +0 / −0.185 |
| > 250 to ≤ 315 | +0 / −0.210 |
| > 315 to ≤ 400 | +0 / −0.230 |
| > 400 | +0 / −0.250 |
Precision Cold Drawn Bar Tolerances (BS EN ISO 286-2)
| Dia. (mm) | h5 | h6 | h7 | h8 | h9 | h10 | h11 | h12 |
|---|---|---|---|---|---|---|---|---|
| ≤ 3 | 0.004 | 0.006 | 0.010 | 0.014 | 0.025 | 0.040 | 0.060 | 0.100 |
| > 3–6 | 0.005 | 0.008 | 0.012 | 0.018 | 0.030 | 0.048 | 0.075 | 0.120 |
| > 6–10 | 0.006 | 0.009 | 0.015 | 0.022 | 0.036 | 0.058 | 0.090 | 0.150 |
| > 10–18 | 0.008 | 0.011 | 0.018 | 0.027 | 0.043 | 0.070 | 0.110 | 0.180 |
| > 18–30 | 0.009 | 0.013 | 0.021 | 0.033 | 0.052 | 0.084 | 0.130 | 0.210 |
| > 30–50 | 0.011 | 0.016 | 0.025 | 0.039 | 0.062 | 0.100 | 0.160 | 0.250 |
| > 50–80 | 0.013 | 0.019 | 0.030 | 0.046 | 0.074 | 0.120 | 0.190 | 0.300 |
| > 80–120 | 0.015 | 0.022 | 0.035 | 0.054 | 0.087 | 0.140 | 0.220 | 0.350 |
| > 120–180 | 0.018 | 0.025 | 0.040 | 0.063 | 0.100 | 0.160 | 0.250 | 0.400 |
| > 180–250 | 0.020 | 0.029 | 0.046 | 0.072 | 0.115 | 0.185 | 0.290 | 0.460 |
Surface Finishes Available for Titanium Grade 2 Round Bar
| Code | Description | Code | Description |
|---|---|---|---|
| CD | Cold drawn | BD | Bright drawn |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled, annealed & pickled |
| P | Polished | RT | Rough turned / peeled |
| P&T | Peeled and turned | ST | Smooth turned |
| PR | Peeled and reeled | SRE | Slit rolled edge |
Titanium Grade 2 Round Bars Inventory
Titanium Gr 2 Hex Bar
Titanium Gr 2 Square Bar
Titanium Gr 2 Bright Bar
Titanium Gr 2 Threaded Bar

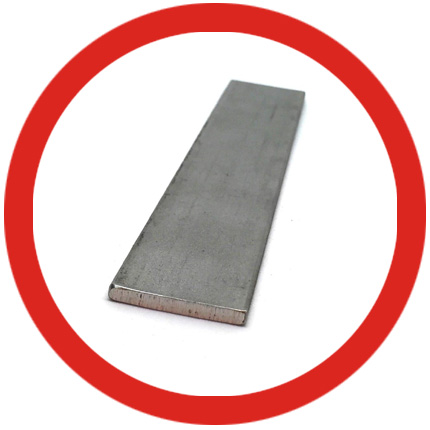

Titanium Gr 2 Flat Bar
Titanium Gr 2 Rectangular Bar
Testing, Inspection & Quality Compliance
Every heat of ASTM B348 Gr 2 Titanium Round Bar supplied by Jade Special Metals is subject to the following mandatory and supplementary tests:
| Test Type | Standard / Method | Applicability |
|---|---|---|
| Chemical analysis | OES / ICP per ASTM E2371 | 100% of heats |
| Tensile (room temperature) | ASTM E8 / ISO 6892-1 | Per lot per ASTM B348 |
| Hardness (Brinell/Vickers) | ASTM E10 / E92 | Per lot |
| Ultrasonic inspection (UT) | ASTM E2375 / AMS 2630 | On request / aerospace orders |
| Dye penetrant (PT) | ASTM E165 / ASME Sec. V | On request / weld-prep ends |
| Eddy current (ECT) | ASTM E309 | Bars <50 mm dia. on request |
| Dimensional inspection | Calibrated CMM / micrometers | 100% for precision ground bars |
| Positive material identification | XRF per ASTM E1476 | On request; standard for export orders |
| Mill Test Certificate | EN 10204 3.1 or 3.2 | Standard with all shipments |
Applications of Titanium Grade 2 Round Bars
The combination of corrosion resistance, biocompatibility, and structural integrity makes Titanium Alloy Grade 2 Round Bars the material of choice across the following industries:
- Chemical Processing: Reactors, heat exchangers, distillation columns, pumps, and piping handling nitric acid, chromic acid, organic acids, and halide-containing process streams. Titanium Gr 2 Rods machined into valve stems and pump shafts outperform stainless steel 316L in oxidising acidic service by a factor of 10× or greater in corrosion rate.
- Marine & Offshore: Propeller shafts, seawater cooling system components, torpedo tubes, hull fittings, submarine hardware, and desalination plant components. The passive TiO₂ film remains intact in full seawater immersion indefinitely unlike copper alloys or stainless steel, titanium does not biofoul or suffer accelerated crevice attack in aerated seawater at ambient temperatures.
- Aerospace & Defence: Hydraulic tube fittings, fasteners, airframe bulkheads where light weight and moderate strength are required. ASTM B348 Gr 2 Rods are approved to AMS 4902 and AMS 4921 for use in commercial aviation and defence applications where traceability to raw material origin is mandatory.
- Medical & Dental: Bone screws, orthopaedic implants, spinal fusion rods, dental abutments, and surgical instrumentation. Grade 2 titanium is approved to ASTM F67 for surgical implant use. Its osseointegration properties are superior to stainless steel, and it is MRI-compatible — generating no artefacts in magnetic resonance imaging.
- Power Generation & Desalination: Condenser tubing support structures, cooling water intake screens, flash evaporator baffles, and multi-stage flash (MSF) plant hardware. Titanium’s imperviousness to biologically influenced corrosion (BIC) from sulphate-reducing bacteria makes it the engineered choice for once-through seawater cooling systems.
- Pulp & Paper Industry: Bleaching plant equipment, chlorine dioxide handling systems, and washers operating in hot bleach filtrate. Titanium Grade 2 Bars offer 20+ year service life in environments that destroy super-austenitic stainless steels within months.
Titanium Grade 2 Round Bar Price in India
| Size Description | Pack Qty | Indicative Price (GBP) |
|---|---|---|
| 10.0 mm dia × 500 mm long | 5 pcs | £176.00 |
| 10.0 mm dia × 1000 mm long | 1 pc | £81.00 |
| 10.0 mm dia × 1000 mm long | 5 pcs | £267.00 |
| 10.0 mm dia × 2000 mm long | 1 pc | £122.00 |
| 0.125″ (3.18 mm) dia × 10–12″ long | — | USD $3.43 |
| 0.25″ (6.35 mm) dia × 72″ long | — | USD $63.38 |
| 0.3125″ (7.94 mm) dia × 12″ long | — | USD $17.91 |
Price is influenced by bar diameter, length, finish grade, order quantity, and prevailing titanium sponge market price (linked to rutile/ilmenite feedstock). The titanium market is indexed to the Fastmarkets’ monthly titanium sponge benchmark. Bulk orders (>1 tonne) attract structured discounts. Contact our sales team with your RFQ.
Why Choose Jade Special Metals for Titanium Grade 2 Round Bars?
- Mill-certified material: Every bar supplied with EN 10204 3.1 MTC showing full chemical analysis, mechanical test results, and heat/lot traceability. 3.2 certification (independent third-party witness) available on request.
- Comprehensive stock: We hold Titanium Grade 2 Round Bar in diameters from 3 mm to 200 mm in standard lengths — most orders dispatched within 24–48 hours.
- Value-added processing: In-house saw cutting (±1 mm), precision turning, centreless grinding, and polishing reduce your procurement-to-production lead time.
- Global export capability: Customs documentation, IMO-compliant packaging, and logistics to 60+ countries via established freight partners. Export experience in USA, UAE, UK, Germany, Singapore, Canada, and Australia.
- Technical support: Our metallurgical team assists with grade selection, welding procedure qualification, and corrosion assessment — not just order processing.
- Compliance: ASTM B348, ASME SB348, AMS 4902/4921, ASTM F67, NACE MR0175/ISO 15156 and dual-stamped (B348 + F67) bars for medical applications on request.
Frequently Asked Questions - Titanium Grade 2 Round Bars
What is the difference between Titanium Grade 1 and Grade 2?
What standards does ASTM B348 Grade 2 round bar comply with?
Can Titanium Grade 2 bars be machined?
What is the colour test for titanium weld quality?
How does the price of Titanium Grade 2 compare to stainless steel 316L?
What is the minimum order quantity (MOQ)?
Do you supply dual-certified ASTM B348 + ASTM F67 bars for medical use?
Titanium Grade 2 Round Bar Supplier to Gulf, Asia & Europe
The exact Titanium Grade 2 Round Bar price for your project depends on diameter, length, surface finish, order volume, and current titanium sponge market rates. We maintain ready inventory of ASTM B348 Gr 2 Titanium Round Bars, Titanium Alloy Grade 2 Hex Bars, Titanium Gr 2 Flat Bars, and Grade 2 Titanium Rods in a broad size range. Submit your specifications below or contact our technical sales team for a fast, competitive quote. We serve buyers across the Gulf (UAE, Saudi Arabia, Qatar, Oman, Kuwait, Bahrain), Asia (Singapore, South Korea, Japan, Malaysia, India, China, Taiwan), and Europe (Germany, Italy, UK, Netherlands, France, Spain, Poland).
