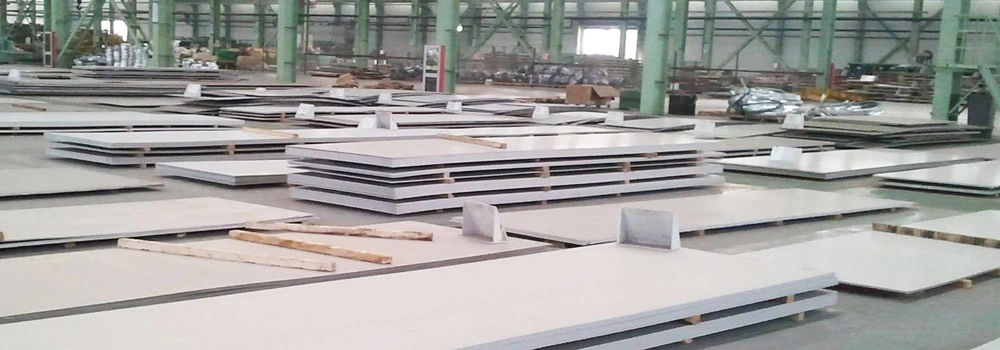

SMO 254 Sheets & Plates

Request a Quote → Same-Day Response Guaranteed

📧 sales@jadealloys.com  |  📞 +91 9987685906  |  Contact US

SMO 254 (Standard designation: UNS S31254, DIN 1.4547) is a fully austenitic, super-austenitic stainless steel originally developed by Outokumpu (Sweden). Its unusually high molybdenum and nitrogen content gives it a Pitting Resistance Equivalent Number (PREN) of approximately 42–43, compared to just 24 for SS 316L making SMO 254 the preferred material for applications where lower grades rapidly corrode.

Key properties that make SMO 254 Plates and Sheets the preferred engineering choice:

• Superior pitting & crevice corrosion resistance in seawater and chloride-bearing process streams (PREN ~43 vs ~24 for 316L)
• Excellent stress corrosion cracking (SCC) resistance — critical in hot saline environments and HCl-bearing process media
• High tensile strength (490 MPa min.) with outstanding impact toughness down to sub-zero temperatures
• Fully austenitic and non-magnetic — low magnetic permeability (<1.005 μr) for applications requiring magnetic neutrality
• Cost-effective alternative to high-cost nickel alloys (e.g. Hastelloy C-276) and titanium in many corrosive services

Explore our full high-corrosion range: SMO 254 Round Bars  |  SMO 254 Pipes & Tubes  |  Stainless Steel 904L Sheets & Plates  |  Inconel 625 Sheets & Plates

 For standard references, see our ASTM A240 Standard Information page

“Contact Jade Special Metals today with your requirement for SMO 254 Sheet and SMO 254 Plates. We assure you of the best quote.

All values in weight percent (%). Nitrogen content of 0.18–0.22% is a defining characteristic of SMO 254, contributing both to its strength and its exceptional pitting resistance.

PREN Value — Why It Matters for Engineers

The Pitting Resistance Equivalent Number (PREN) is the standard engineering metric for comparing alloy corrosion resistance in chloride environments, calculated as: PREN = %Cr + 3.3×%Mo + 16×%N. A PREN above 40 is the accepted industry benchmark for seawater service.

How Does SMO 254 Compare to SS 316L?

SMO 254 contains 6% molybdenum vs. 2–2.5% in 316L, and adds nitrogen (0.18–0.22%) which is absent in 316L. This raises tensile strength and, more importantly, pushes the PREN from ~24 to ~43 — delivering dramatically better resistance to chloride pitting, crevice attack, and SCC. SMO 254 is the standard upgrade when 316L has failed in service. For a full comparison, see our Stainless Steel 316/316L Sheets & Plates page.

Jade Alloys maintains ready stock of all common forms and surface finishes of 254 SMO flat products:

 Additional forms available: Shim Sheets, Circles, Perforated Sheets, Chequered Plates, Laser-Cut Sheets, and Slitting Coils. All cut-to-size available.

Standard stock dimensions and approximate weights for SMO 254 Sheets and Plates (density 7.95 g/cm³). Use our Metal Weights Calculator for custom calculations.

Because SMO 254 / UNS S31254 is a fully austenitic grade, proper welding practice is critical to maintain its corrosion performance after fabrication:

• Recommended filler metal: AWS A5.9 ER385 (20-25-5 Cu L) or matching composition over-alloyed filler. Never use 316L filler — it will result in underalloyed welds with poor corrosion resistance in the HAZ.
• Heat input limit: Do not exceed 1.5 kJ/mm. Excessive heat promotes sensitization and chromium carbide precipitation, reducing corrosion resistance in the heat-affected zone (HAZ).
• Interpass temperature: Maintain below 100°C (212°F) in multi-pass welding to prevent hot cracking and sigma-phase formation.
• Post-weld cleaning: Pickling and passivation are mandatory after welding to restore full corrosion resistance. Mechanical grinding alone is insufficient — it creates embedded iron contamination.
• Hot working range: 1150–900°C. Avoid prolonged exposure at 600–900°C — sigma phase precipitation risk reduces toughness and corrosion resistance.
• Annealing / Solution Treatment: 1150–1200°C followed by rapid water quench — restores full corrosion resistance and mechanical properties after forming or welding.

 Jade Alloys supplies SMO 254 sheets and plates with full material traceability. Contact our technical team for processed, cut-to-size, or fabrication-ready requirements.

The combination of exceptional corrosion resistance, high strength, and non-magnetic character makes SMO 254 the material of choice across multiple high-demand industries:

SMO 254 Plates in Oil & Gas / Offshore Platforms

Offshore platforms, subsea equipment, and FPSO vessels operate in highly aggressive seawater environments. SMO 254 plates are used for seawater handling systems, pump housings, desalination modules, and topside piping where 316L and duplex grades fail to achieve adequate service life. The PREN of ~43 exceeds the seawater threshold, and the SMO 254 Pipes & Tubes complement flat-plate applications in offshore skid fabrication.

SMO 254 Sheets in Chemical & Pulp/Paper Processing

The pulp and paper industry’s bleaching sequences use aggressive mixtures of chlorine compounds, chlorine dioxide, and hot acids that rapidly attack standard austenitic grades. SMO 254 sheets provide the corrosion resistance required for bleaching equipment, digesters, and washers. In chemical processing, SMO 254 is specified for sulfuric acid service, HCl-bearing streams, phosphoric acid production, and pharmaceutical CIP (Clean-in-Place) systems where product purity and vessel longevity are critical.

Other major application industries:

• Marine & Desalination: Heat exchangers, reverse osmosis housings, brine concentration vessels, seawater intake screens
• Petrochemical & Refining: Reactor vessels, separators, heat exchangers handling chloride-contaminated hydrocarbons
• Power Industry: Flue gas desulfurization (FGD) systems, cooling water circuits, condenser tubes
• Mechanical & Plant Engineering: High-corrosion pressure vessels, flanges, expansion joints in chloride service
• Food & Pharmaceutical: CIP systems, sterile processing, non-magnetic requirements near MRI equipment
• Aerospace: Non-magnetic structural components, cryogenic applications

📦 Check Available Stock — SMO 254 Sheets & Plates

📧 sales@jadealloys.com  |  📞 +91 9987685906  |  Contact US

Every batch of ASTM A240 SMO 254 Sheet and Plate from Jade Alloys passes a rigorous multi-stage inspection protocol before dispatch:

 We support Lloyd’s Register, Bureau Veritas, DNV-GL, TUV, SGS, and Intertek third-party inspections at our Mumbai warehouse. Contact us at sales@jadealloys.com with your inspection specification.

As a globally active SMO 254 Plates exporter, Jade Alloys ships to over 50 countries. We are an IEC-registered exporter with GST-compliant documentation. Our largest export destinations include:
