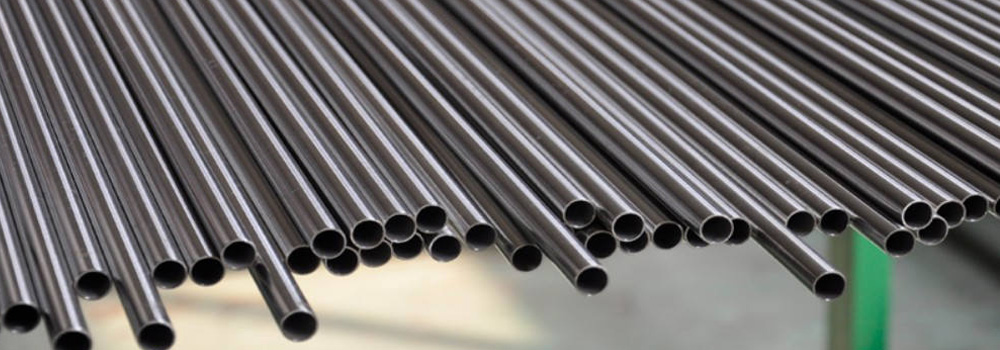

ASTM B444 / UNS N06625 Inconel 625 Pipes & Tubes Manufacturer, Supplier & Exporter — Engineered for the Harshest Environments
UNS N06625 Pipes and Tubes, DIN 2.4856 Pipes and Tubes, Inconel Alloy 625 Tubing, Inconel 625 Pipes, Inconel 625 Seamless Pipes, Alloy 625 ERW Pipes, 625 Inconel Welded Pipe Manufacturers in Mumbai, India
When a project cannot afford a pipeline failure, such as subsea gas gathering lines, flue-gas desulphurization units, or aerospace exhaust systems, engineers specify Inconel 625 pipe. Jade Alloys is a Mumbai-based Inconel 625 pipe manufacturer, supplier, and exporter that produces and stocks this alloy to exact ASTM B444 and UNS N06625 requirements, without compromise.
Inconel 625 (UNS N06625, Werkstoff Nr. 2.4856, DIN 2.4856) is a nickel-chromium-molybdenum-niobium alloy prized for its combination of very high strength and outstanding resistance to a wide range of corrosive environments, a chemistry we break down in detail in our guide to Inconel composition and properties. It doesn’t rely on a protective oxide layer alone; its solid-solution strengthening from molybdenum and niobium keeps it stable from cryogenic temperatures up to roughly 980°C, which is why alloy 625 pipe and alloy 625 tube remain the specification of choice across offshore, aerospace, and chemical processing industries where failure is not an option.
As an ISO-certified Inconel 625 pipe manufacturer based in Mumbai, India, Jade Alloys stocks Inconel 625 pipe and Inconel 625 tube in seamless, welded, and ERW construction, in round, square, and rectangular profiles, ready for immediate dispatch or custom production runs. Our production and testing facilities are built around ASTM B444, ASTM B705, and ASME SB444 specifications, giving EPC contractors, OEMs, and procurement teams a single, traceable source for every dimension of alloy 625 piping their project calls for.
Whether your requirement is a single length of Inconel 625 seamless pipe for a repair job or a full container load of alloy 625 ERW pipe for a new offshore installation, Jade Alloys combines mill-grade quality control with the responsiveness of a stockist. Every consignment ships with complete mill test certification, and our sales engineers can advise on the correct schedule, wall thickness, and end finish for your application, not just quote a size off a catalogue. Buyers researching Inconel 625 pipe price, alloy 625 tube specifications, or ASTM B444 N06625 dimensional standards will find the complete technical reference (chemical composition, mechanical properties, equivalent grades, schedule charts, weight charts, and pressure ratings) in the sections below.
Need Inconel 625 pipe or tube for your next project? Share your specification and get a firm price, delivery timeline, and mill certification details within 24 hours.
Quick Section Links
- Inconel 625 Pipe & Tube Specifications
- Types of Inconel 625 Pipes & Tubes
- Inconel 625 Chemical Composition (ASTM B444 / UNS N06625)
- Inconel 625 Mechanical Properties
- Inconel 625 Pipe Equivalent Grades
- Inconel 625 Pipe & Tube Schedule Chart (IPS Sizes)
- Inconel 625 Seamless Pipe Sizes & Schedules
- ASTM B444 Inconel 625 ERW Tube — Wall Thickness vs. OD Range
- Inconel 625 Pipe Weight Chart (Full Size Range)
- Inconel 625 Hollow Pipe Pressure Rating
- Applications of Inconel 625 Pipes & Tubes
- Manufacturing Process at Jade Alloys
- Quality Assurance & Testing
- Packaging & Export Capabilities
- Inconel 625 Pipe & Tube Price List
- Frequently Asked Questions
Inconel 625 Pipe & Tube Specifications
| Parameter | Details |
|---|---|
| Specification | ASTM B444, ASTM B705, ASME SB444, ASME SB705 |
| Equivalent Standard | UNS N06625, Werkstoff Nr. 2.4856 |
| Dimensional Standards | ASTM, ASME, API, DIN, JIS |
| Pipe Size Range | 1/8″ NB to 30″ NB |
| Tube Size Range | 1/2″ OD to 16″ OD |
| Wall Thickness | 0.35 mm to 50 mm |
| Type | Seamless, ERW, Welded (EFW), Fabricated, LSAW |
| Schedule | SCH 5s, 10s, 20, 30, 40, STD, 60, 80, 80s, 120, 140, 160, XS, XXS |
| Form | Round, Square, Rectangular, Hydraulic, U-Bend, Coiled, Pan-cake Coils |
| Length | Single Random, Double Random, Cut-to-Length |
| End Finish | Plain End, Beveled End, Threaded End |
| Surface Finish | Pickled & Annealed, Bright Annealed, Polished |
“Contact Jade Special Metals today with your requirement for Inconel 625 Pipe and Alloy 625 Tubes. We assure you of the best quote.
Types of Inconel 625 Pipes & Tubes
Rather than offering a single product form, Jade Alloys stocks Inconel 625 across every construction method and profile that industrial buyers ask for:
| Product Type | Typical Use Case |
|---|---|
| Inconel 625 Seamless Pipe | High-pressure, high-integrity piping with no weld seam |
| Inconel 625 Welded Pipe (EFW) | Large-diameter piping where seamless is not economical |
| Inconel 625 ERW Pipe | Medium-pressure process lines, cost-efficient runs |
| Inconel 625 Seamless Tube | Heat exchanger and instrumentation tubing |
| Inconel 625 Welded Tube | Condenser and boiler tubing bundles |
| Inconel 625 Square & Rectangular Pipe | Structural and specialty fabrication |
| Inconel 625 U-Bend Tube | Shell-and-tube heat exchangers |
| Inconel 625 Instrumentation Tube | Control-line and sensor tubing on offshore platforms |
| Inconel 625 Capillary Tube | Precision fluid-metering assemblies |

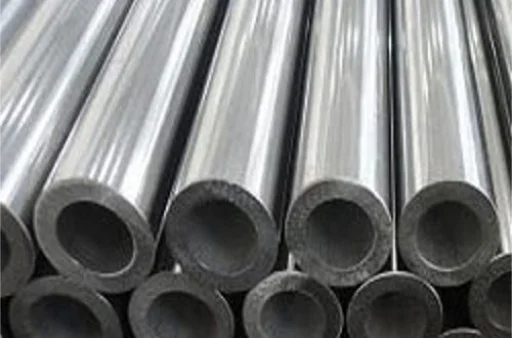

Inconel 625 Pipes & Tubes Inventory

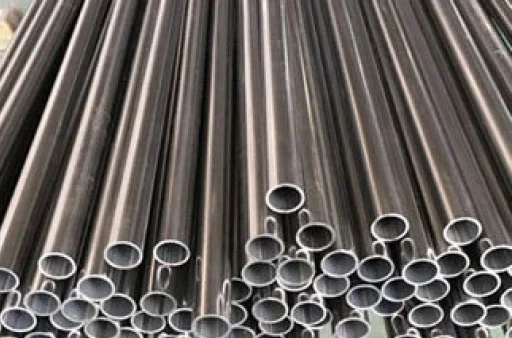

Inconel 625 Seamless Pipes & Tubes

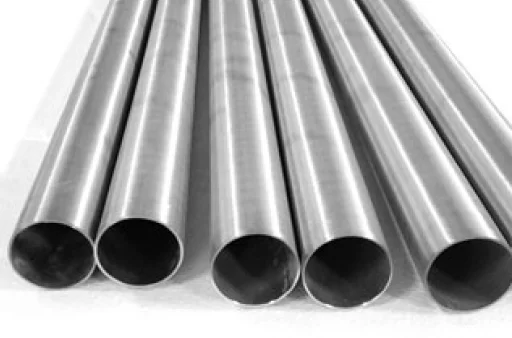

Inconel 625 Welded Pipes & Tubes
Inconel 625 ERW Pipes & Tubes
Inconel 625 Round Pipes & Tubes
Inconel 625 Square Pipes & Tubes
Inconel 625 Rectangular Pipes & Tubes
Inconel 625 Chemical Composition (ASTM B444 / UNS N06625)
| Element | Ni | Cr | Mo | Nb+Ta | Fe | C | Mn | Si | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| % Composition | 58.0 min | 20.0–23.0 | 8.0–10.0 | 3.15–4.15 | 5.0 max | 0.10 max | 0.50 max | 0.50 max | 0.40 max | 0.40 max | 0.015 max |
Niobium is the detail competitors’ pages routinely leave out: it’s the element that stabilizes the alloy against sensitization during welding, which is exactly why Inconel 625 pipe is chosen for welded pressure vessels where stainless steel would need post-weld heat treatment. For a deeper look at how these elements shape alloy behavior across the Inconel family, see our guide to understanding Inconel material properties, composition, and grades.
Inconel 625 Mechanical Properties
| Property | Value |
|---|---|
| Density | 8.44 g/cm³ |
| Melting Range | 1290°C – 1350°C |
| Tensile Strength | 930 MPa min (135,000 psi) |
| Yield Strength (0.2% offset) | 517 MPa min (75,000 psi) |
| Elongation | 42.5% min |
| Hardness | ≤ 220 HB / ≤ 99 HRB |
| Max Service Temperature | Up to 980°C (oxidation resistance) |
| Min Service Temperature | Cryogenic (down to -196°C) |
Inconel 625 Pipe Equivalent Grades
| Standard | UNS | Werkstoff Nr. | JIS | BS | EN | AFNOR | GOST |
|---|---|---|---|---|---|---|---|
| Inconel 625 | N06625 | 2.4856 | NCF 625 | NA 21 | NiCr22Mo9Nb | NC22DNB4M | ХН75МБТЮ |
Inconel 625 Pipe & Tube Schedule Chart (IPS Sizes)
| Nominal Size (IPS) | OD (inches) | Available Schedules |
|---|---|---|
| 1/8″ | 0.405 | SCH 40, 80 |
| 1/4″ | 0.540 | SCH 10, 40, 80 |
| 3/8″ | 0.675 | SCH 10, 40, 80 |
| 1/2″ | 0.840 | SCH 5, 10, 40, 80, 160, XXH |
| 3/4″ | 1.050 | SCH 10, 40, 80, 160, XXH |
| 1″ | 1.315 | SCH 5, 10, 40, 80, 160, XXH |
| 1-1/4″ | 1.660 | SCH 10, 40, 80, 160, XXH |
| 1-1/2″ | 1.900 | SCH 10, 40, 80, 160, XXH |
| 2″ | 2.375 | SCH 10, 40, 80, 160, XXH |
| 2-1/2″ | 2.875 | SCH 10, 40, 80, 160, XXH |
| 3″ | 3.500 | SCH 5, 10, 40, 80, 160, XXH |
| 3-1/2″ | 4.000 | SCH 10, 40, 80, 160, XXH |
| 4″ | 4.500 | SCH 10, 40, 80, 160, XXH |
| 5″ | 5.563 | SCH 10, 40, 80, 160, XXH |
| 6″ | 6.625 | SCH 5, 10, 40, 80, 120, 160, XXH |
| 8″ | 8.625 | SCH 5, 10, 40, 80, 120, 160, XXH |
| 10″ | 10.750 | SCH 10, 20, 40, 80 |
| 12″ | 12.750 | SCH 10, 20, 40, 80 |
| 14″ | 14.000 | SCH 10, 40 |
| 16″ | 16.000 | SCH 10, 40 |
| 18″ | 18.000 | SCH 40 |
Inconel 625 Seamless Pipe Sizes & Schedules
| Pipe OD (mm) | Wall Thickness (mm) | NPS | Schedule | Weight (kg/m) |
|---|---|---|---|---|
| 13.72 | 1.65 | 1/4″ | 10S | 0.50 |
| 13.72 | 3.02 | 1/4″ | 80S | 0.81 |
| 17.15 | 1.65 | 3/8″ | 10S | 0.64 |
| 21.34 | 2.11 | 1/2″ | 10S | 1.02 |
| 21.34 | 3.73 | 1/2″ | 80S | 1.65 |
| 26.67 | 2.11 | 3/4″ | 10S | 1.30 |
| 26.67 | 3.91 | 3/4″ | 80S | 2.23 |
| 33.40 | 2.77 | 1″ | 10S | 2.13 |
| 33.40 | 4.55 | 1″ | 80S | 3.29 |
| 33.40 | 6.35 | 1″ | 160 | 4.30 |
| 42.16 | 2.77 | 1-1/4″ | 10S | 2.73 |
| 42.16 | 6.35 | 1-1/4″ | 160 | 5.69 |
| 48.26 | 2.77 | 1-1/2″ | 10S | 3.16 |
| 48.26 | 5.08 | 1-1/2″ | 80S | 5.49 |
| 60.33 | 2.77 | 2″ | 10S | 3.99 |
| 60.33 | 5.54 | 2″ | 80S | 7.60 |
| 60.33 | 8.74 | 2″ | 160 | 11.29 |
| 73.03 | 3.05 | 2-1/2″ | 10S | 5.35 |
| 73.03 | 7.01 | 2-1/2″ | 80S | 11.59 |
| 88.90 | 3.05 | 3″ | 10S | 6.56 |
| 88.90 | 7.62 | 3″ | 80S | 15.51 |
| 88.90 | 11.13 | 3″ | 160 | 21.67 |
| 101.60 | 3.05 | 3-1/2″ | 10S | 7.53 |
| 101.60 | 8.08 | 3-1/2″ | 80S | 18.92 |
| 114.30 | 3.05 | 4″ | 10S | 8.50 |
| 114.30 | 8.56 | 4″ | 80S | 22.67 |
| 114.30 | 13.49 | 4″ | 160 | 34.05 |
| 141.30 | 6.55 | 5″ | 40S | 22.10 |
| 141.30 | 15.88 | 5″ | 160 | 49.87 |
| 168.28 | 7.11 | 6″ | 40S | 28.69 |
| 168.28 | 18.26 | 6″ | 160 | 68.59 |
| 219.08 | 8.18 | 8″ | 40S | 43.20 |
| 219.08 | 23.01 | 8″ | 160 | 112.97 |
ASTM B444 Inconel 625 ERW Tube — Wall Thickness vs. OD Range
| Wall Thickness (inch) | Available OD Sizes |
|---|---|
| 0.010″ | 1/16″, 1/8″, 3/16″ |
| 0.020″ | 1/16″ – 3/8″ |
| 0.028″ | 1/8″ – 2″ |
| 0.035″ | 1/8″ – 2-1/4″ |
| 0.049″ | 3/16″ – 2-1/4″ |
| 0.065″ | 1/4″ – 3″ |
| 0.083″ | 1/4″ – 3″ |
| 0.095″ | 1/2″ – 2″ |
| 0.109″ | 1/2″ – 2″ |
| 0.120″ | 1/2″ – 3″ |
| 0.125″ | 3/4″ – 3-1/4″ |
| 0.134″ | 1″ |
| 0.250″ | 3″ |
| 0.375″ | 3-1/2″ |
Inconel 625 Pipe Weight Chart (Full Size Range)
| NPS | OD (mm) | Wall Thickness (mm) | Schedule | Weight (kg/m) |
|---|---|---|---|---|
| 1/2″ | 21 | 2.77 | 40 STD | 1.27 |
| 1/2″ | 21 | 3.73 | 80 STD | 1.62 |
| 3/4″ | 27 | 2.87 | 40 STD | 1.68 |
| 1″ | 33 | 3.38 | 40 STD | 2.50 |
| 1-1/4″ | 42 | 3.56 | 40 STD | 3.39 |
| 1-1/2″ | 48 | 3.68 | 40 STD | 4.05 |
| 2″ | 60 | 3.91 | 40 STD | 5.44 |
| 2-1/2″ | 73 | 5.52 | 40 STD | 8.63 |
| 3″ | 89 | 5.49 | 40 STD | 11.28 |
| 4″ | 114 | 6.02 | — | 16.07 |
| 6″ | 168 | 7.11 | 40 STD | 28.69 |
| 8″ | 219 | 8.18 | 40 | 42.35 |
| 10″ | 273 | 9.27 | 40 STD | 63.30 |
| 12″ | 324 | 9.53 | — | 73.82 |
| 14″ | 356 | 9.53 | STD | 81.28 |
| 16″ | 406 | 9.53 | STD | 93.21 |
| 18″ | 457 | 9.53 | STD | 105.14 |
| 20″ | 508 | 9.53 | 20 STD | 117.08 |
| 24″ | 610 | 9.53 | 20 STD | 140.94 |
| 30″ | 762 | 9.53 | STD | 176.73 |
| 36″ | 914 | 9.53 | STD | 215.53 |
| 42″ | 1067 | 12.70 | XHY | 33.10* |
| 48″ | 1219 | 12.70 | XHY | 331.40 |
Weights are calculated per ASTM B444 dimensional data; exact figures vary by heat and finish. Confirm against the mill certificate for procurement documentation, or check our metal weights calculator for a quick estimate on any size.
Inconel 625 Hollow Pipe — Maximum Internal Pressure Rating
Pressure de-rates as temperature rises. The table below gives maximum allowable internal pressure (ksi) at various service temperatures for select sizes.
| Size (mm) | 100°F | 200°F | 300°F | 400°F | 500°F | 625°F | 700°F |
|---|---|---|---|---|---|---|---|
| 3 x 0.5 | 940 | 940 | 930 | 921 | 907 | 888 | 869 |
| 6 x 1 | 940 | 940 | 930 | 921 | 907 | 888 | 869 |
| 8 x 1 | 681 | 681 | 675 | 668 | 658 | 644 | 630 |
| 8 x 2 | 1476 | 1476 | 1462 | 1447 | 1425 | 1395 | 1366 |
| 10 x 1 | 534 | 534 | 529 | 524 | 516 | 505 | 494 |
| 12 x 1 | 440 | 440 | 435 | 431 | 424 | 415 | 407 |
| 16 x 1 | 324 | 324 | 321 | 318 | 313 | 307 | 300 |
Values are indicative; always confirm against the applicable ASME B31.3 or B31.1 piping code calculation for the specific design case.
Applications of Inconel 625 Pipes & Tubes
Every batch of Inconel 625 pipe and tube produced or sourced by Jade Alloys follows a documented process chain:
- Raw Material Sourcing: nickel-alloy billets and coils sourced from approved international mills with full chemical traceability.
- Hot/Cold Working: seamless pipe is hot-extruded or pilgered; tube is cold-drawn to final dimensional tolerance.
- Solution Annealing: heat treatment restores ductility and dissolves precipitates formed during working.
- Pickling & Surface Finishing: acid pickling removes scale; bright-annealed or polished finishes are available on request.
- Testing & Inspection: dimensional, chemical, and mechanical verification
- Marking & Packing: heat-number stamping, color coding, and export-grade packaging.
Our full quality policy and certifications cover every stage of this process.
Manufacturing Process at Jade Alloys
Every batch of Inconel 625 pipe and tube produced or sourced by Jade Alloys follows a documented process chain:
- Raw Material Sourcing: nickel-alloy billets and coils sourced from approved international mills with full chemical traceability.
- Hot/Cold Working: seamless pipe is hot-extruded or pilgered; tube is cold-drawn to final dimensional tolerance.
- Solution Annealing: heat treatment restores ductility and dissolves precipitates formed during working.
- Pickling & Surface Finishing: acid pickling removes scale; bright-annealed or polished finishes are available on request.
- Testing & Inspection: dimensional, chemical, and mechanical verification
- Marking & Packing: heat-number stamping, color coding, and export-grade packaging.
Our full quality policy and certifications cover every stage of this process.
Quality Assurance & Testing
Jade Alloys tests every consignment of Inconel 625 pipe and tube before dispatch. Standard tests include:
| Test | Purpose |
|---|---|
| Chemical Analysis (Spectro/PMI) | Confirms alloy composition matches UNS N06625 |
| Mechanical Testing | Verifies tensile, yield, and elongation values |
| Hydrostatic Test | Confirms pressure integrity of the pipe wall |
| Ultrasonic Testing (UT) | Detects sub-surface flaws without destructive cutting |
| Radiography (RT) | Verifies weld-seam integrity on welded/ERW product |
| Intergranular Corrosion (IGC) Test | Confirms resistance to sensitization after welding |
| Flaring & Flattening Test | Confirms ductility of tube ends for fabrication |
Third-party inspection agencies (TÜV, BV, Lloyd’s, SGS) are welcomed for stage-wise inspection on request, and every shipment is accompanied by an EN 10204 3.1 mill test certificate.
Packaging & Export Capabilities
Inconel 625 pipes and tubes are packed to withstand ocean freight and rough handling:
- Wooden crates with anti-corrosion VCI wrapping for seamless and welded pipe
- Bundled and strapped tube packs with end-caps to prevent bore contamination
- Individually labeled heat numbers on each pipe/tube length for traceability
- Export documentation: commercial invoice, packing list, certificate of origin, mill test certificate (EN 10204 3.1/3.2)
- Shipping via sea (FCL/LCL) or air freight for urgent orders
Key Export Markets: Saudi Arabia, UAE, Kuwait, Qatar, Singapore, Malaysia, Indonesia, South Korea, Germany, Italy, UK, USA, Brazil, Nigeria, South Africa, Egypt, and 35+ other countries.
Inconel 625 Pipe & Tube Price List
Actual Inconel 625 pipe price varies daily with LME nickel/molybdenum rates, order quantity, and destination. Confirm a firm quote before placing an order.
| Product Description | Price in India (INR) | Price in UAE (AED) |
|---|---|---|
| Inconel 625 Seamless Pipe — Size: 1/4″ x SCH 80 (3–4 mm Thk), 2.2 Mtr Length | INR 58,562 | 3,024.19 AED |
| Inconel 625 Welded Pipe (Z=1, O) to ASTM B705 Gr. UNS N06625 Gr 2, 1.38 + 1.84 Mtrs Length | INR 323,382 | 16,699.72 AED |
| Inconel 625 Seamless Pipe to ASTM B444 Gr. UNS N06625 Gr 2, 1.7 Mtrs Length, Size: 73.02 mm OD x 3.2 mm Thk | INR 65,097 | 3,361.66 AED |
| Inconel 625 Pipe — 1/2″ OD x 0.049″ Thk | INR 3,935 | 203.21 AED |
Prices shown are illustrative examples for common stock sizes and are subject to change based on current metal indices.Request a live quote for your exact size, schedule, and quantity.
Frequently Asked Questions - Inconel 625 Pipes & Tubes
1. What is the difference between Inconel 625 pipe and Inconel 625 tube?
2. What is the maximum operating temperature for Inconel 625 pipe?
3. Is Inconel 625 pipe suitable for seawater applications?
4. What is the difference between seamless and welded (ERW/EFW) Inconel 625 pipe?
5. Does Inconel 625 pipe need post-weld heat treatment (PWHT)?
6. What certifications accompany Inconel 625 pipe shipments from Jade Alloys?
7. What sizes of Inconel 625 pipe does Jade Alloys stock?
8. Can Inconel 625 tube be bent or U-bent for heat exchangers?
Related Products
Countries We Export Inconel 625 Pipes & Tubes To
Jade Alloys ships Inconel 625 pipes and tubes to buyers across 50+ countries:
Get a Quote from a Leading Inconel 625 Pipes & Tubes Supplier
Ready to source Inconel 625 pipes & tubes from a certified, direct manufacturer with 20+ years of global export experience? Jade Alloys delivers quality, complete documentation, and on-time delivery every time. Submit your RFQ with material grade, size, quantity, and delivery location and our sales team responds within 24 business hours.
