Hastelloy C276 Pipes and Tubes Supplier & Exporter in India
Alloy C276 Pipe, Hastelloy Alloy C276 Seamless Tubes, Alloy C276 Tubing Exporter, Alloy C276 ERW Tubing, Hastelloy C276 Seamless Pipes, Hastelloy 2.4819 Tubing, Hastelloy C276 Welded Pipes, ASME SB626 Alloy C276 Welded Tubing, Hastelloy N10276 Tubes Manufacturer in India
Jade Alloys is a trusted source for Hastelloy C276 pipes and tubes engineered for the most aggressive service environments. Every Hastelloy C276 pipe and tube we supply is produced from traceable, high-purity nickel-alloy stock and inspected against international specifications before it leaves our facility.
Hastelloy C276 (UNS N10276) is a nickel-molybdenum-chromium alloy prized for its versatility across oxidising and reducing conditions. Its high molybdenum and tungsten content delivers exceptional resistance to pitting, crevice corrosion and chloride-induced stress-corrosion cracking, which is why an alloy C276 pipe is the default choice for wet chlorine, sulfuric and hydrochloric acid, sour gas and flue-gas desulfurisation duty. We hold ready stock across common schedules and can fabricate non-standard sizes to order, so buyers get both fast delivery on routine requirements and a single point of contact for special dimensions.
Whether you need a single Hastelloy C276 seamless pipe for a heat-exchanger repair or a bulk export lot of welded tube for a new process plant, Jade Alloys supplies the correct grade, documentation and packaging on time and to specification.
Quick Section Links
- What Is Hastelloy C276 (UNS N10276)?
- Wide Range of Hastelloy C276 Pipes and Tubes
- Hastelloy C276 Pipes and Tubes Specification
- Hastelloy C276 Equivalent Grades
- Hastelloy C276 Chemical Composition
- Hastelloy C276 Mechanical Properties
- Hastelloy C276 Physical Properties
- Hastelloy C276 Seamless Pipe Size Chart (mm)
- Hastelloy C276 Pressure Rating Chart
- Applications of Hastelloy C276 Pipes and Tubes
- Why Choose Jade Alloys for Hastelloy C276 Pipe and Tube
- Frequently Asked Questions
What Is Hastelloy C276 (UNS N10276)?
Hastelloy C276 is one of the most widely used nickel-base corrosion-resistant alloys in the world. A typical composition balances roughly 57% nickel with 15–17% molybdenum, 14.5–16.5% chromium, 4–7% iron and 3–4.5% tungsten, while carbon and silicon are deliberately held very low (0.010% C max). This low-carbon “L-grade” chemistry minimises grain-boundary carbide precipitation during welding, so a Hastelloy C276 pipe retains its corrosion resistance even in the as-welded condition, a major practical advantage for fabricators.
The result is an alloy that resists a broader range of chemicals than almost any other single material: strong oxidisers, reducing acids, chloride solutions and mixed-acid streams. Combined with good ductility, high tensile strength and excellent weldability, these properties make Hastelloy C276 tube and pipe a long-life, low-maintenance solution for chemical processing, oil and gas, marine and pollution-control systems.

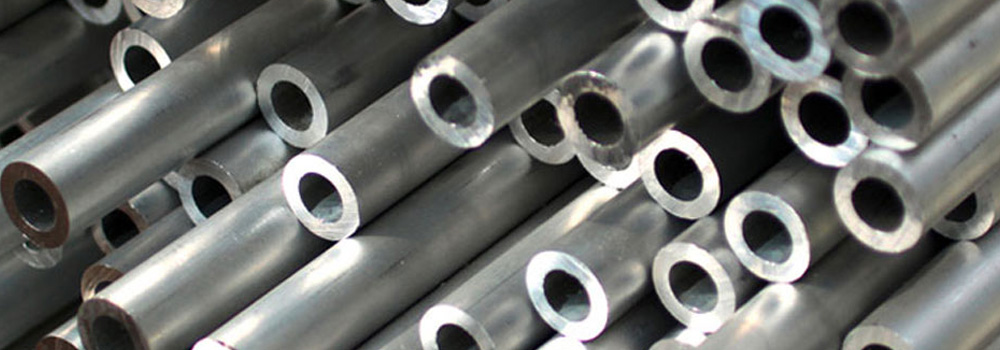

Wide Range of Hastelloy C276 Pipes and Tubes
Our inventory spans every common manufacturing route and profile, all conforming to the applicable ASTM B622 and ASTM B619 standards.
Hastelloy C276 Seamless Pipes & Tubes
Hastelloy C276 Welded Pipes & Tubes
Hastelloy C276 ERW Pipes & Tubes
Hastelloy C276 Round Pipes & Tubes
Hastelloy C276 Square Pipes & Tubes
Hastelloy C276 Rectangular Pipes & Tubes
- Hastelloy C276 Seamless Pipe
Formed from a solid billet without a weld seam for a uniform microstructure and maximum integrity in high-pressure, highly corrosive service. - Hastelloy C276 Welded Pipe
Made by forming and precision-welding alloy plate; ideal for larger diameters, longer continuous lengths and cost-sensitive projects. - Hastelloy C276 ERW Pipe
Electric-resistance-welded pipe offering consistent wall thickness and economy for moderate-pressure piping runs. - Hastelloy C276 EFW Pipe
Electric-fusion-welded pipe for heavier walls and larger bores where seamless production is impractical. - Hastelloy C276 Seamless & Welded Tube
Boiler, condenser, heat-exchanger, hydraulic and instrumentation tube to ASTM B622 / B626, including U-bend and coiled forms. - Square, Rectangular & Round
Full profile range plus polished, bright-annealed, capillary and sanitary tube for specialised applications.
Hastelloy C276 Pipes and Tubes Specification
| Seamless Pipe & Tube | ASTM B622 / ASME SB622 |
| Welded Pipe | ASTM B619 / ASME SB619 |
| Welded Tube | ASTM B626 / ASME SB626 |
| Dimensions | ASTM, ASME and API |
| Pipe Size | 1/8″ NB to 30″ NB |
| Tube Size | 3 mm OD to 219 mm OD |
| Wall Thickness | 0.35 mm to 50 mm |
| Schedule | SCH 5S, 10S, 20, 30, 40, STD, 60, 80, 80S, 120, 140, 160, XS, XXS |
| Type | Seamless / ERW / Welded / EFW / Fabricated |
| Form | Round, Square, Rectangular, Hydraulic, U-Shape, Coiled, Pan-Cake Coils |
| Length | Single Random, Double Random & Required / Cut Length (up to 6 m) |
| End | Plain End, Bevelled End, Threaded |
Hastelloy C276 Tube Equivalent Grades
| Standard | UNS | Werkstoff Nr. | EN | JIS / Other | GOST |
|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NiMo16Cr15W | NW 0276 | ХН65МВУ / ЭП760 |
Hastelloy C276 Chemical Composition
This carefully balanced chemistry lets a Hastelloy C276 pipe perform in both acidic and chloride-bearing conditions, from oxidising to reducing.
| Element | Ni | Mo | Cr | Fe | W | Co | Mn | V | Si | C | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C276 | Balance | 15.0–17.0 | 14.5–16.5 | 4.0–7.0 | 3.0–4.5 | 2.5 max | 1.0 max | 0.35 max | 0.08 max | 0.010 max | 0.04 max | 0.03 max |
Hastelloy C276 Mechanical Properties
| Density | Melting Point | Tensile Strength | Yield Strength (0.2% offset) | Elongation |
|---|---|---|---|---|
| 8.89 g/cm³ | 1370°C (2500°F) | 790 MPa (115,000 psi) | 355 MPa (52,000 psi) | 40% |
Alloy C276 Pipe Physical Properties
| Property | Imperial Value | Metric / SI Value |
|---|---|---|
| Density | 0.321 lb/in³ | 8.89 g/cm³ |
| Specific Heat | 0.102 Btu/lb·°F | 427 J/kg·°C |
| Melting Range | 2415–2500°F | 1325–1370°C |
| Thermal Conductivity | 67.9 Btu·in/ft²·h·°F | 9.8 W/m·°C |
| Young’s Modulus (Elasticity) | 29.8 × 10³ ksi | 205 GPa |
| Shear Modulus (G) | 11.4 × 10³ ksi | 79 GPa |
| Poisson’s Ratio | 0.307 | 0.307 |
| Magnetic Permeability | 1.00022 @ 200 oersted (15.9 kA/m) | |
Hastelloy C276 Seamless Pipe Size Chart (mm)
ASTM B622 Hastelloy C276 pipe representative outside diameters, wall thicknesses and unit weights.
| NPS | OD (mm) | Sch | Wall (mm) | Weight (kg/m) |
|---|---|---|---|---|
| 1/4″ | 13.72 | 10S | 1.65 | 0.50 |
| 1/4″ | 13.72 | 40S | 2.24 | 0.64 |
| 1/4″ | 13.72 | 80S | 3.02 | 0.81 |
| 3/8″ | 17.15 | 40S | 2.31 | 0.86 |
| 1/2″ | 21.34 | 10S | 2.11 | 1.02 |
| 1/2″ | 21.34 | 40S | 2.77 | 1.29 |
| 1/2″ | 21.34 | 80S | 3.73 | 1.65 |
| 3/4″ | 26.67 | 40S | 2.87 | 1.71 |
| 3/4″ | 26.67 | 80S | 3.91 | 2.23 |
| 1″ | 33.40 | 40S | 3.38 | 2.54 |
| 1″ | 33.40 | 80S | 4.55 | 3.29 |
| 1″ | 33.40 | 160 | 6.35 | 4.30 |
| 1¼″ | 42.16 | 40S | 3.56 | 3.44 |
| 1½″ | 48.26 | 40S | 3.68 | 4.11 |
| 1½″ | 48.26 | 80S | 5.08 | 5.49 |
| 2″ | 60.33 | 40S | 3.91 | 5.52 |
| 2″ | 60.33 | 80S | 5.54 | 7.60 |
| 2½″ | 73.03 | 40S | 5.16 | 8.77 |
| 3″ | 88.90 | 40S | 5.49 | 11.47 |
| 3″ | 88.90 | 80S | 7.62 | 15.51 |
| 4″ | 114.30 | 40S | 6.02 | 16.32 |
| 4″ | 114.30 | 80S | 8.56 | 22.67 |
| 6″ | 168.28 | 40S | 7.11 | 28.69 |
| 6″ | 168.28 | 80S | 10.97 | 43.21 |
| 8″ | 219.08 | 40S | 8.18 | 43.20 |
| 8″ | 219.08 | 80S | 12.70 | 65.63 |
Stock & Custom Size Availability
| Type | Outside Diameter | Wall Thickness | Length |
|---|---|---|---|
| NB Sizes (in stock) | 1/8″ ~ 8″ | SCH 5 / 10 / 40 / 80 / 160 | Up to 6 m |
| Seamless Pipe (custom) | 5.0 mm ~ 203.2 mm | As per requirement | Up to 6 m |
| Welded Pipe (stock + custom) | 5.0 mm ~ 1219.2 mm | 1.0 ~ 15.0 mm | Up to 6 m |
Hastelloy C276 Pressure Rating Chart
Working pressure (psig) by pipe OD and wall thickness — use for reference; always confirm against your design code.
| Pipe OD (in) | .028″ | .035″ | .049″ | .065″ | .083″ | .095″ | .109″ | .120″ |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 7,900 | 10,100 | — | — | — | — | — | — |
| 1/4″ | 3,700 | 4,800 | 7,000 | 9,500 | — | — | — | — |
| 5/16″ | — | 3,700 | 5,400 | 7,300 | — | — | — | — |
| 3/8″ | — | 3,100 | 4,400 | 6,100 | — | — | — | — |
| 1/2″ | — | 2,300 | 3,200 | 4,400 | — | — | — | — |
| 3/4″ | — | — | 2,200 | 3,000 | 4,000 | 4,600 | — | — |
| 1″ | — | — | — | 2,200 | 2,900 | 3,400 | 3,900 | 4,300 |
Applications of Hastelloy C276 Pipes and Tubes
- Chemical processing: reactors, scrubbers, transfer lines handling sulfuric/hydrochloric acid, wet chlorine and mixed acids.
- Oil & gas / sour service: offshore, subsea and H₂S-bearing streams (NACE MR0175 / ISO 15156).
- Flue-gas desulfurisation (FGD): wet scrubbers in power plants with high chloride and sulfur.
- Marine & seawater: cooling systems and piping needing pitting/crevice resistance.
- Heat exchangers & condensers: high-temperature, corrosive chemical and petrochemical duty.
- Pulp & paper: bleach plants and digesters.
- Pharmaceutical & food processing: contamination-sensitive, high-purity systems.
- Pollution control & waste treatment: aggressive effluent handling.
Frequently Asked Questions - Hastelloy C276 Pipes and Tubes
1. What is Hastelloy C276 pipe made of?
2. What standards do Hastelloy C276 pipes and tubes conform to?
3. What is the maximum service temperature for Hastelloy C276?
4. What sizes of Hastelloy C276 pipes and tubes are available?
5. What is the difference between Hastelloy C276 and Hastelloy C22?
6.Is Hastelloy C276 suitable for seawater and sour gas service?
7. What test certificates are provided with Hastelloy C276 pipes and tubes?
Countries We Export Hastelloy C276 Pipes and Tubes To
Jade Alloys supplies Hastelloy C276 pipes and tubes worldwide, with sales representation and stocking support across every major industrial region.
Get a Quote from a Leading Hastelloy C276 Pipes & Tubes Supplier
Ready to source Hastelloy C276 pipes and tubes from a certified, direct manufacturer with 20+ years of global export experience? Jade Alloys delivers quality, complete documentation and on-time delivery every time. Submit your RFQ with grade, size, quantity and delivery location, and our sales team responds within 24 business hours.
