Hastelloy C22 Plates and Sheets | ASTM B575 UNS N06022 Supplier India

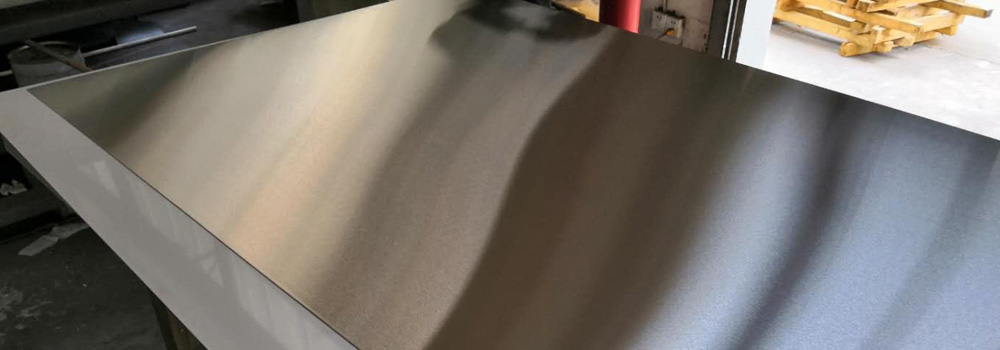

Hastelloy C22 Plates and Sheets (ASTM B575 / UNS N06022) are premium nickel-chromium-molybdenum-tungsten flat products engineered for superior resistance to oxidizing acids, chloride-induced pitting, and stress corrosion cracking in the most aggressive process environments.
Jade Alloys, Mumbai, maintains a ready stock of Hastelloy C22 Sheets, Plates, Coils, Shims, Strips, and Foils and supplies to buyers across India, the Middle East, Europe, and Southeast Asia. We are a trusted Hastelloy C22 Plates and Sheets manufacturer and supplier operating from Mumbai for many years, serving the chemical, oil and gas, pharmaceutical, and power generation industries.
Hastelloy C22 is a versatile nickel-chromium-molybdenum-tungsten alloy that provides outstanding resistance to a wide array of corrosive media. This includes oxidizing acids with chloride ions, nitric acid mixtures, and wet chlorine. The ASTM B575 standard specifies requirements for low-carbon nickel-based alloys in sheet, plate, and strip forms. Our Alloy C22 Plate products fully comply with these standards, ensuring they meet the necessary chemical and mechanical properties such as tensile strength and hardness.
The alloy’s rich composition makes it highly resistant to corrosion in both flowing and stagnant water, making Hastelloy C22 Sheets and Hastelloy C22 Plates ideal for high-performance, high-temperature applications. It is also highly ductile and easy to weld due to its low carbon content, which prevents the formation of grain-boundary precipitates. This means it can be used in its as-welded state without the need for additional heat treatment. Hastelloy C22 is a preferred material for many industrial components, including reactors, heat exchangers, and columns in the chemical process industry. Its superior resistance to both oxidizing and non-oxidizing chemicals, as well as pitting and stress corrosion cracking, makes it a reliable choice for critical applications.
We supply both Hot Rolled (HR) and Cold Rolled (CR) forms of these sheets and plates. Our products are available in various forms, including coils, foils, and strips, and can be customized to fit specific project requirements. As a reliable exporter of ASTM B575 Alloy C22 from Mumbai, we offer competitive pricing. All material is supplied with EN 10204 3.1 Mill Test Certificates traceable to ASTM B575 requirements. Jade Alloys is exported to 50 or more countries including Saudi Arabia, UAE, Europe, USA, and Singapore.
Quick Section Links
- Hastelloy C22 Sheets and Plates Specifications
- Hastelloy C22 Sheets and Plates Equivalent Standard Grade
- Hastelloy C22 Sheets and Plates Chemical Composition
- Hastelloy C22 Sheets and Plates Mechanical Properties
- Hastelloy C22 Sheets and Plates Standard Sizes
- Hastelloy C22 Plate Key Physical Data
- Thickness Tolerance Chart for Nickel Alloy C22 Plates
- Available Stock of ASTM B575 Hastelloy C22 Sheets and Plates
- Packing and Delivery
- Applications of Hastelloy C22 Sheets and Plates
- Welding and Fabrication of Hastelloy C22 Sheets and Plates
- Hastelloy C22 vs C276: Which to Choose?
- Related Products
- Get a Competitive Price for Hastelloy C22 Sheets and Plates
- Frequently Asked Questions About Hastelloy C22 Sheets and Plates
Hastelloy C22 Sheets and Plates Specifications
Our Hastelloy C22 Sheets and Plates meet stringent specifications, ensuring they are suitable for various demanding applications.
| Aspect | Details |
|---|---|
| Standard | ASTM B575, ASME SB-575, UNS N06022 |
| Width | 1000 mm, 1219 mm, 1500 mm, 2000 mm and custom widths |
| Length | 2000 mm, 2440 mm, 3000 mm, 6000 mm and custom lengths |
| Thickness | 0.3 mm to 120 mm |
| Finish | 2B, 2D, BA, No.1, No.4, 8K Mirror, Brushed, Sandblasted, Electroless Nickel Plating |
| Forms | Sheets, Plates, Coils, Foils, Strips, Shim Sheets, Perforated Sheets, Chequered Plates |
| Hardness | Rockwell B 90 (annealed sheets), Rockwell B 95 (plates) |
| MTC | EN 10204 3.1 and 3.2 Mill Test Certificates available |
| Edges | Round, Rolled, Slit, Square |
| Sheet Thickness | 0.1 mm to 6.35 mm |
| Plate Thickness | Above 6.35 mm up to 120 mm |
| Foil Thickness | Below 0.15 mm |
Per ASTM B575: Foil = below 0.15 mm | Sheet = 0.15 mm to 6.35 mm | Plate = above 6.35 mm thick.
Hastelloy C22 Sheets and Plates Equivalent Standard Grade
| Standard | Werkstoff Nr. | UNS | JIS | EN | Trade Name |
|---|---|---|---|---|---|
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | NiCr21Mo14W | Nicrofer 5621 |
Hastelloy C22 Sheets & Plates Inventory
Hastelloy C22 Perforated Sheets
Hastelloy C22 Chequred Plates
Hastelloy C22 Shim Sheets
Hastelloy C22 Coils
Hastelloy C22 Foils
Hastelloy C22 Strips
Hastelloy C22 Sheets and Plates Chemical Composition
This table outlines the chemical composition of Hastelloy C22 sheets and plates, detailing the percentage ranges of key elements that give the alloy its superior corrosion resistance.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | W |
|---|---|---|---|---|---|---|---|---|---|---|
| Hastelloy C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | Balance | 20.00 to 22.50 | 2.00 to 6.00 | 12.50 to 14.50 | 2.50 to 3.50 |
Note: W (Tungsten) at 2.50 to 3.50% is a key differentiating element compared to Hastelloy C276, which contains no tungsten. This is what gives Hastelloy C22 superior performance in mixed-acid and chlorinated environments.
Hastelloy C22 Sheets and Plates Mechanical Properties
The mechanical properties of Hastelloy C22 Sheets and Plates highlight their strength and durability, crucial for high-stress applications.
| Element | Density | Melting Range | Tensile Strength | Yield Strength (0.2%) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C22 | 8.69 g/cm3 | 1357 to 1399 deg C (2475 to 2550 deg F) | 690 MPa (100,000 psi) | 310 MPa (45,000 psi) | 45% |
| Property | Value |
|---|---|
| Hardness | Rockwell B 90 (annealed sheet) |
| Young’s Modulus | 209 GPa (30.3 x 10^3 ksi) |
| Specific Heat | 381 J/kg degC (0.091 Btu/lb degF) |
| Electrical Resistivity | 1.215 microhm.m |
| Thermal Expansion (70 to 400 degF) | 6.9 x 10^-6 /degF |
Request a Quote for Hastelloy C22 Sheets and Plates
Contact Jade Alloys today with your requirement for Hastelloy C22 Sheet and Alloy C22 Plates. We assure you of the best quote.
Hastelloy C22 Sheets and Plates Standard Sizes
We provide standard thickness sizes for Hastelloy C22 sheets and plates, showing both millimeter and inch conversions.
| Thickness (mm) | Thickness (inches) |
|---|---|
| 0.4 mm | 0.01575 inches |
| 0.5 mm | 0.01969 inches |
| 0.7 mm | 0.02756 inches |
| 0.8 mm | 0.03150 inches |
| 1.0 mm | 0.03937 inches |
| 1.2 mm | 0.04724 inches |
| 1.6 mm | 0.06299 inches |
| 2.0 mm | 0.07874 inches |
| 3.0 mm | 0.11810 inches |
| 4.0 mm | 0.15750 inches |
| 5.0 mm | 0.19690 inches |
| 6.0 mm | 0.23620 inches |
| 8.0 mm | 0.31500 inches |
| 10.0 mm | 0.39370 inches |
| 12.0 mm to 120.0 mm | Custom cut-to-size. Contact us for combinations outside standard stock. |
Hastelloy C22 Plate Key Physical Data
| Property | Value |
|---|---|
| HS Code | 75062000 |
| Density | 8.69 g/cm3 (0.314 lb/in3) |
| Melting Range | 1357 to 1399 deg C (2475 to 2550 deg F) |
Thickness Tolerance Chart for Nickel Alloy C22 Plates
Thickness tolerance values in mm per EN 10051 / ASTM B575. Custom tolerance profiles available on request.
| Width (mm) | 2.5<t<4.5 | 4.5<t<6.0 | 6.0<t<8.0 | 8.0<t<10 | 10<t<12.5 | 12.5<t<16 | 16<t<20 | 20<t<25 | 25<t<30 |
|---|---|---|---|---|---|---|---|---|---|
| w < 1200 | 0.20 | 0.23 | 0.30 | 0.32 | 0.35 | 0.80 | 0.80 | 0.80 | 1.0 |
| 1200 < w < 1500 | 0.20 | 0.25 | 0.30 | 0.35 | 0.38 | 0.80 | 0.80 | 0.90 | 1.0 |
| 1500 < w < 1800 | 0.20 | 0.28 | 0.32 | 0.38 | 0.40 | 0.80 | 0.80 | 0.90 | 1.1 |
| 1800 < w < 2100 | 0.20 | 0.30 | 0.36 | 0.40 | 0.45 | 0.80 | 0.80 | 0.90 | 1.1 |
| 2100 < w < 2400 | N/A | 0.80 | 0.80 | 0.80 | 0.80 | 0.90 | 1.0 | 1.1 | 1.5 |
| 2400 < w < 2700 | N/A | 0.80 | 0.80 | 0.80 | 0.90 | 1.0 | 1.1 | 1.3 | 1.7 |
| 2700 < w < 3000 | N/A | 0.80 | 0.90 | 1.0 | 1.0 | 1.1 | 1.3 | 1.4 | 1.8 |
Available Stock of ASTM B575 Hastelloy C22 Sheets and Plates
Jade Alloys maintains a large inventory of the following Hastelloy C22 product forms for immediate dispatch from Mumbai:
|
|
Packing and Delivery
All Hastelloy C22 Sheets and Plates are packed in wooden boxes or metal pallets with moisture-proof VCI polythene wrapping. Export packing is available for sea, air, and road freight. Delivery lead time: ready stock is dispatched within 3 working days from Mumbai.
Applications of Hastelloy C22 Sheets and Plates
Hastelloy C22 Sheets and Plates maintain excellent mechanical integrity up to 677 deg C (1250 deg F) in continuous service. Exposure beyond this limit causes detrimental phase precipitation. For intermittent service, the alloy performs reliably up to 1093 deg C (2000 deg F). The alloy is used across the following industries:
|
|
Hastelloy C22 Plates are specifically used in flue gas desulfurization (FGD) scrubbers, pharmaceutical reactor linings, and chlorine handling systems where C276 performance is insufficient. The alloy’s tungsten content provides superior resistance in mixed-acid environments. It has also been used successfully as scrubber components for hospital waste, municipal waste, and spent solvent incineration, as well as in waste-water treatment ion exchange resin rejuvenation systems.
Welding and Fabrication of Hastelloy C22 Sheets and Plates
Hastelloy C22 can be welded using GTAW (TIG), GMAW (MIG), SMAW (stick), SAW, and plasma welding processes. The recommended filler metal is ERNiCrMo-10 (AWS A5.11 ENiCrMo-10), which is a matching C22 filler. No post-weld heat treatment is required due to the alloy’s low carbon content, which prevents grain-boundary carbide precipitation. Avoid welding in the 600 to 1100 deg C range to prevent sensitisation.
Available fabrication processes include edging, deburring, grinding, waterjet cutting, laser cutting, plasma cutting, and oxy-propane flame cutting. Value-added services include cutting to length, polishing, sawing, shearing, bending, blanking, and slitting.
| Welding Process | Notes |
|---|---|
| GTAW (TIG) | Recommended for precision welds and thin sheets |
| GMAW (MIG) | Suitable for automated welding of plates |
| SMAW (Stick) | General purpose, suitable for field welding |
| SAW | Submerged arc welding for heavy plates |
| Filler Metal | ERNiCrMo-10 (Hastelloy C22 matching filler) |
| Post-Weld Heat Treatment | Not required |
| Welding Electrode | AWS A5.11 ENiCrMo-10 |
Hastelloy C22 vs C276: Which to Choose?
Both Hastelloy C22 and C276 are nickel-chromium-molybdenum alloys covered under ASTM B575, but they differ in composition and performance in specific environments. Use this table to select the right grade for your application:
| Property | Hastelloy C22 (UNS N06022) | Hastelloy C276 (UNS N10276) |
|---|---|---|
| Oxidizing acid resistance | Superior | Good |
| Reducing acid resistance | Good | Superior |
| Chlorine SCC resistance | Superior | Good |
| Chloride-induced pitting resistance | Superior | Good |
| Tungsten content | Yes (2.50 to 3.50%) | No |
| Mixed-acid environments | Superior | Good |
| Weldability | Excellent (as-welded use) | Excellent |
| ASTM Standard | B575 | B575 |
For mixed-acid and chlorinated environments, Hastelloy C22 is typically the better choice. For a broader range of reducing conditions, C276 is preferred. Contact Jade Alloys for a technical recommendation based on your specific application and corrosive media.
Get a Competitive Price for Hastelloy C22 Sheets and Plates
For a competitive price on Hastelloy C22 sheets and plates, please contact us directly. Our team can provide you with a detailed quote based on your specific requirements for size, thickness, and quantity. Hastelloy C22 sheet and plate price varies by thickness, width, and quantity. Contact Jade Alloys for a mill-direct quote with current pricing per kg.
