Inconel 625 Plate & Sheet Suppliers in India
Inconel 625 Plate, Inconel 625 Sheet, Alloy 625 Strip, Nickel Alloy 625 Coil, UNS N06625 Foil, 2.4856 Shim Sheet, AMS 5599 Sheet and AMS 5869 Foil.

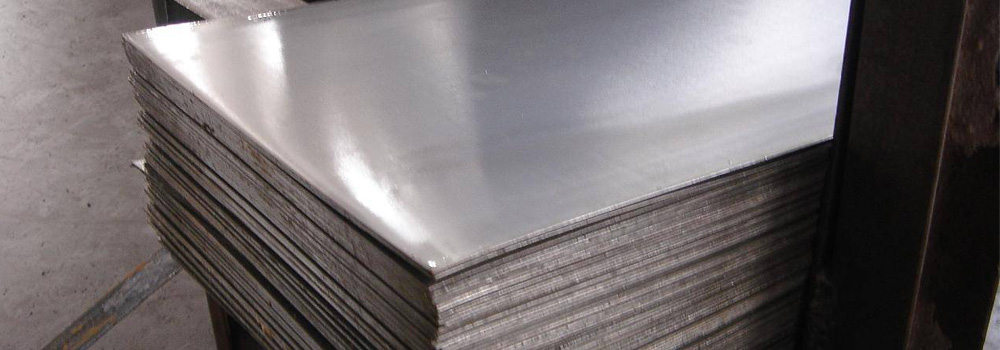

Jade Alloys is an Inconel 625 sheets and plates supplier, stockist and exporter in India, with ready stock in Mumbai from 0.3 mm to 120 mm. Inconel 625 (UNS N06625, Werkstoff 2.4856, Alloy 625) is a nickel-chromium-molybdenum alloy strengthened by niobium. The niobium works with the molybdenum as a solid-solution strengthener, so the plate reaches very high strength and toughness with no heat treatment. An Inconel 625 plate resists oxidation to about 1800 degrees Fahrenheit, is non-magnetic, and is immune to chloride-ion stress corrosion cracking, which is why it holds up in sea water, acids and sour gas where stainless steel fails.
We supply Inconel 625 sheet, plate, strip, slit coil, foil, shim sheet and clad plate to ASTM B443, ASME SB443, AMS 5599 and AMS 5869, with a minimum order of a single sheet. The range sits alongside our Inconel 625 round bar, pipes and tubes and fasteners, and forms part of our wider Inconel sheets and plates range. Every order carries an EN 10204 3.1 mill test certificate, with 100% radiography, PMI, NACE MR0175 and third-party inspection on request.
Why Source Inconel 625 Sheets & Plates from Jade Alloys
- Ready stock in sheet, plate, strip, coil, foil, shim and clad plate
- Minimum order of one sheet, plus cut-to-size and profiling
- ASTM B443, ASME SB443, AMS 5599 and AMS 5869 compliance
- EN 10204 3.1 MTC, 100% radiography and NACE MR0175 reports
- Third-party inspection accepted (SGS, TUV, BV)
- 2 to 5 day dispatch from Mumbai stock
- ISO 9001:2015 certified, exporting to 40+ countries
Inconel 625 Sheets & Plates Specification
| Property | Details |
|---|---|
| Grade | Inconel 625 / Alloy 625 / UNS N06625 / Werkstoff 2.4856 |
| Specifications | ASTM B443, ASME SB443, ASTM B168, ASME SB168, AMS 5599, AMS 5869 |
| Thickness | 0.3 mm to 120 mm (foil, sheet and plate) |
| Width | 1000 mm to 3000 mm |
| Length | 2000 mm to 12500 mm, custom cut |
| Forms | Sheet, Plate, Strip, Coil, Foil, Shim Sheet, Clad Plate, Circle, Flats, 625-LCF |
| Surface Finish | No.1, 2B, 2D, BA, No.4, No.8, 8K, Hairline, Mirror, HR, CR |
| Condition | Annealed, solution annealed, cold rolled, hot rolled |
| MTC Certificate | EN 10204 3.1 / 3.2 |
Inconel 625 Thickness Tolerances (ASTM B443)
| Thickness Band | Tolerance (+/-) |
|---|---|
| 0.3 to 1.0 mm | 0.025 mm |
| 1.0 to 2.0 mm | 0.040 mm |
| 2.0 to 3.0 mm | 0.050 mm |
| 3.0 to 6.35 mm | 0.080 mm |
| Over 6.35 mm | 0.130 mm |
Inconel 625 Equivalent Grades
| Standard | Designation |
|---|---|
| UNS | N06625 |
| Werkstoff Nr. | 2.4856 |
| EN | NiCr22Mo9Nb |
| AFNOR | NC22DNB4M |
| JIS | NCF 625 |
| BS | NA 21 |
| GOST | ХН75МБТЮ |
| AMS | 5599 (sheet / plate / strip), 5869 (foil) |
Inconel 625 Chemical Composition
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 58.0 min |
| Chromium (Cr) | 20.0 to 23.0 |
| Molybdenum (Mo) | 8.0 to 10.0 |
| Niobium + Tantalum (Nb+Ta) | 3.15 to 4.15 |
| Iron (Fe) | 5.0 max |
| Carbon (C) | 0.10 max |
| Manganese (Mn) | 0.50 max |
| Silicon (Si) | 0.50 max |
| Aluminium (Al) | 0.40 max |
| Titanium (Ti) | 0.40 max |
| Cobalt (Co) | 1.0 max |
| Phosphorus (P) | 0.015 max |
| Sulphur (S) | 0.015 max |
Molybdenum and niobium are the main solid-solution strengtheners, which is why Inconel 625 reaches its strength without a precipitation heat treatment.
Inconel 625 Mechanical Properties
| Property | Value (annealed) |
|---|---|
| Tensile Strength | 827 MPa (120 ksi) min |
| Yield Strength 0.2% Offset | 414 MPa (60 ksi) min |
| Elongation | 30% min |
| Hardness | 220 HB max |
| PREN | 40.8 |
| Modulus of Elasticity | 207.5 GPa at RT |
Tensile Properties at Elevated Temperature
| Temperature | UTS (MPa) | 0.2% Yield (MPa) | Elongation (%) |
|---|---|---|---|
| Room temp | 923 | 491 | 47 |
| 538 °C | 816 | 388 | 54 |
| 649 °C | 811 | 380 | 60 |
| 760 °C | 490 | 371 | 75 |
| 871 °C | 239 | 204 | 90 |
| 982 °C | 106 | 68 | 95 |
Modulus of Elasticity at Elevated Temperature
| Temperature | Modulus (GPa) | Temperature | Modulus (GPa) |
|---|---|---|---|
| 21 °C | 207.5 | 538 °C | 178.6 |
| 93 °C | 204.1 | 649 °C | 170.3 |
| 204 °C | 197.9 | 760 °C | 160.6 |
| 316 °C | 191.7 | 871 °C | 147.5 |
| 427 °C | 185.5 | – | – |
Inconel 625 Physical, Thermal & Electrical Properties
| Property | Value |
|---|---|
| Density | 8.44 g/cm³ (0.305 lb/in³) |
| Melting Range | 1290 to 1350 degrees C (2350 to 2460 degrees F) |
| Magnetic Response | Non-magnetic |
| Specific Heat | 410 J/kg.K |
Thermal Conductivity & Electrical Resistivity
| Temp (°F) | Thermal Cond. (Btu·in/ft²-h·°F) | Lin. Expansion (10-6/°F) | Resistivity (ohm-circ mil/ft) |
|---|---|---|---|
| 70 | 68 | – | 776 |
| 200 | 75 | 7.1 | 794 |
| 400 | 87 | 7.3 | 806 |
| 600 | 98 | 7.4 | 812 |
| 800 | 109 | 7.6 | 818 |
| 1000 | 121 | 7.8 | 830 |
| 1200 | 132 | 8.2 | 830 |
| 1400 | 144 | 8.5 | 824 |
| 1600 | 158 | 8.8 | 818 |
| 1800 | 175 | – | 812 |
Inconel 625 Sheet & Plate Size Chart
Standard nominal Inconel 625 sheet and plate thicknesses, in inches and millimetres.
| Inch | mm | Inch | mm |
|---|---|---|---|
| 0.125″ | 3.18 | 0.875″ | 22.2 |
| 0.134″ | 3.40 | 1″ | 25.4 |
| 0.156″ | 3.96 | 1.125″ | 28.6 |
| 0.187″ | 4.75 | 1.250″ | 31.8 |
| 0.250″ | 6.35 | 1.500″ | 38.1 |
| 0.312″ | 7.92 | 1.750″ | 44.5 |
| 0.375″ | 9.53 | 2″ | 50.8 |
| 0.500″ | 12.7 | 2.500″ | 63.5 |
| 0.600″ | 15.9 | 3″ | 76.2 |
| 0.750″ | 19.1 | Custom | Cut to size |
Inconel 625 Sheet Gauge Chart
Sheet gauge to decimal thickness and weight for Inconel 625 sheet.
| Gauge | Thickness (inch) | Weight (lb/ft²) |
|---|---|---|
| 8 | 0.1719 | 6.93 |
| 10 | 0.1406 | 5.67 |
| 11 | 0.1250 | 5.04 |
| 12 | 0.1094 | 4.41 |
| 14 | 0.0781 | 3.15 |
| 16 | 0.0625 | 2.52 |
| 18 | 0.0500 | 2.016 |
| 20 | 0.0375 | 1.512 |
| 22 | 0.0312 | 1.26 |
| 24 | 0.0250 | 1.008 |
| 26 | 0.0187 | 0.756 |
Inconel 625 Plate Weight Chart
Approximate weight per square metre of Inconel 625 plate by thickness (density 8.44 g/cm³). For other sizes use the Metal Weights Calculator.
| Thickness | Weight (kg/m²) | Thickness | Weight (kg/m²) |
|---|---|---|---|
| 3/16″ | 42.18 | 1″ | 220.06 |
| 1/4″ | 56.25 | 1-1/4″ | 274.90 |
| 3/8″ | 85.07 | 1-1/2″ | 330.44 |
| 1/2″ | 113.19 | 1-3/4″ | 385.99 |
| 5/8″ | 137.80 | 2″ | 440.82 |
| 3/4″ | 165.22 | 3″ | 661.59 |
Available Forms of Inconel 625 Sheet & Plate in Stock
| Form | Thickness | Width |
|---|---|---|
| Inconel 625 Sheet | 0.3 to 5 mm | up to 1500 mm |
| Inconel 625 Plate (HR & CR) | 5 to 120 mm | up to 3000 mm |
| Alloy 625 Strip | 0.1 to 3 mm | up to 600 mm |
| Nickel Alloy 625 Coil / Slit Coil | 0.1 to 4 mm | to order |
| Inconel 625 Foil (AMS 5869) | 0.01 to 0.1 mm | up to 500 mm |
| Shim Sheet | 0.1 to 2 mm | to order |
| Clad Plate, Circles, Flats, 625-LCF | to order | to order |
Inconel 625 Surface Finishes
Sheets and plates are supplied in the finish the application needs, including No.1, 2B, 2D, BA, No.4, No.8, 8K, hairline, mirror, hot rolled (HR) and cold rolled (CR).
Inconel 625 to AMS 5599 and AMS 5869
We supply Inconel 625 sheet, strip and plate to AMS 5599, and Inconel 625 foil and thin gauge, including the 625-LCF low-cycle-fatigue grade, to AMS 5869. These aerospace specifications call for tight control of chemistry, grain and mechanical properties, and are used for jet engine, exhaust and thrust-reverser parts. Name the AMS number on your enquiry and we certify to it.
Fabrication of Inconel 625 Sheets & Plates
- Welding
Inconel 625 is readily welded by TIG, MIG, SAW and plasma processes, using ERNiCrMo-3 filler. Post-weld heat treatment is generally not required.
- Cold Forming
Cold form using standard austenitic stainless methods. Process anneal at 927 to 1038 degrees C to restore ductility between heavy forming steps. - Hot Forming
Hot form up to a maximum furnace temperature of 1149 degrees C, and reheat below 1010 degrees C for finishing. - Machining
Machine in the annealed condition at low speeds and positive feeds to avoid work hardening. - Heat Treatment
| Treatment | Temperature | Cooling |
|---|---|---|
| Solution Annealing | 1093 to 1204 degrees C | Air or water |
| Stress Relieving | 870 to 1040 degrees C | Air |
| Annealing (softening) | 927 to 1038 degrees C | Rapid air |
Corrosion Resistance of Inconel 625 Plates & Sheets
- Excellent resistance to pitting and crevice corrosion
- Immune to chloride-ion stress corrosion cracking
- Resists oxidising and reducing acids, including nitric, sulphuric and phosphoric
- Outstanding oxidation resistance to about 980 degrees C
- NACE MR0175 compliant for sour service
- Resists sea-water impingement and marine corrosion
Typical general corrosion rate of Inconel 625 plate is around 0.2 mm/year (7.9 mpy) in aggressive media.
Applications of Inconel 625 Sheets & Plates
Inconel 625 sheets and plates are used across oil and gas, marine and offshore, chemical and petrochemical, aerospace and defence, power generation and pollution control. Typical parts include aircraft ducting, jet engine exhaust and thrust-reverser systems, specialised sea-water equipment, heat exchangers, pressure vessels, flare stacks and chemical process equipment, wherever high strength must survive heat and aggressive corrosion.
Inconel 625 Sheets & Plates Price
Indicative FOB Mumbai price for Inconel 625 flat products, in US dollars per kg. Final price moves with LME nickel and molybdenum. Contact us for a firm per-kg quote.
| Product | Indicative Price (US$/kg) |
|---|---|
| Inconel 625 Sheet | 32 to 45 |
| Inconel 625 Plate | 30 to 42 |
| Alloy 625 Coil / Strip | 35 to 50 |
| Inconel 625 Shim Sheet / Foil | 45 to 70 |
HSN Code for Inconel 625 Sheets & Plates
HSN code 75062000 applies to Inconel 625 sheets and plates for customs and GST.
