About All Metal Lock Nuts

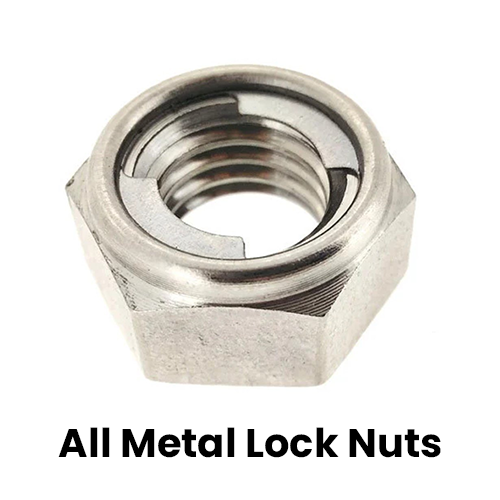

All Metal Lock Nuts are prevailing torque type locking nuts designed without any non-metallic insert, making them ideal for high-temperature and chemically aggressive environments. These lock nuts feature a conical top with a flat bearing surface and chamfered corners, enabling a secure locking action through controlled distortion of the top threads.
The locking mechanism is achieved through the controlled distortion of the top threads. This design creates a high-friction grip that effectively resists loosening caused by heavy shock, intense vibration, and dynamic mechanical forces. Since the locking action is concentrated at the top and the bearing surface is at the bottom, they are considered one-way lock nuts and must be installed with the conical top facing up.
Unlike Nylock nuts, being all-metal allows these fasteners to excel in high-temperature environments and chemical-heavy applications where synthetic inserts would fail. Jade Alloys manufactures these in a full range of metric and imperial sizes to suit global industrial requirements.
All Metal Lock Nuts Properties
| Property | Details |
|---|---|
| Manufacturing | Hot Forged / Cold Forged |
| Metric Size | M3 to M72 |
| Imperial Size | 1/4” to 3” |
| Threads | Metric, UNC, UNF, BSW |
| Form | Fully Threaded / Partially Threaded |
| Standards | ASTM, ASME, DIN, ISO, BS, IS |
| Sub Types | As per product category |
All Metal Lock Nuts Standards
| Standard | Size Range |
|---|---|
| ASME B18.2.1 / B18.2.2 | 1/4” to 3” |
| ASTM A194 / A193 | M6 to M72 |
| DIN 934 / DIN 6914 | M6 to M72 |
| ISO 4032 / ISO 7412 | M6 to M72 |
| BS 1769 | 1/4” to 2” |
| IS 1363 | M6 to M72 |
All Metal Lock Nuts Materials
All Metal Lock Nuts Specifications
Looking to Buy All Metal Lock Nuts?
Check Nuts Weight Chart and Bolts Weight Chart to estimate quantities accurately for your project.
