We are a very famous supplier and Alloy steel fasteners manufactures of High Tensile Alloy Steel Fasteners, offering a complete range of alloy steel bolts, alloy steel screws, alloy steel stud bolts, alloy steel threaded rods, alloy steel nuts, and alloy steel washers. High-strength alloy steel fasteners grades (4130, 4140, 4340 and 8620 (20MnCr5) are used to manufacture these fasteners. The alloying elements in their composition such as chromium, vanadium, tungsten and molybdenum give the fasteners their exceptional strength and corrosion resistance and they are available in several Alloy steel fasteners sizes (usually in a length ranging between M12 to M72) and types.
Our alloy steel fasteners are supplied in the specialized quenched and tempered form, which is often marked by Charpy impact testing, and thus they are useful in critical low-temperature bolting. Commonly produced alloy steel bolt grades are; the industry standards of ASTM A193 B7, B7M, A320 L7, L7M, L43, and high strength metric grades such as ISO 8.8, 10.9, and 12.9. Exact production process, heat treatment, guarantees the permanence and efficiency of the end products that comprise of studs, bolts, nuts, and washers.
Alloy Steel Bolts, Alloy Steel Screws, Alloy Steel Nuts, Alloy Steel Washers and Alloy Steel Fasteners Manufacturers, Supplier in India
Jade Special Metals is a major manufacturer, exporter and supplier of full and high quality Alloy steel Fasteners in India. The fasteners are designed with high tensile strength, resistivity, and high durability in various demanding environments because of their high-quality raw materials which are of high quality and meet the good national and international standards. These Alloy Steel Fasteners are known to be of excellent finish, precise dimensions and solid design and this ensures the quality and good performance without a lack. All major types are available with us such as Alloy Steel Bolts, Nuts, Screws, Washers, and Studs. Call us now to inquire about our current price of Alloy steel fasteners.
Alloy Steel Fasteners Types

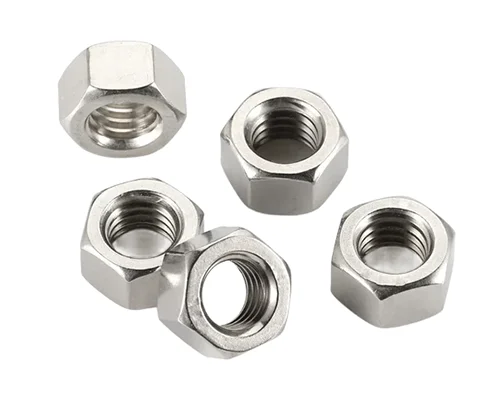

Alloy Steel Nuts

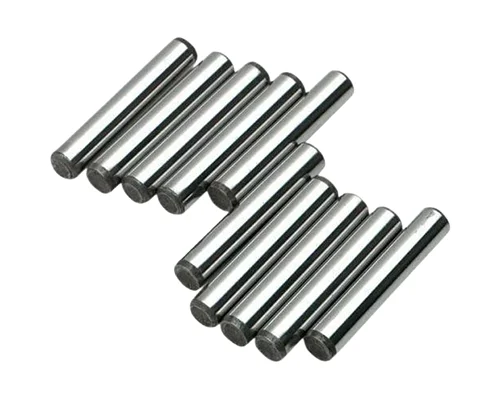

Alloy Steel Pins

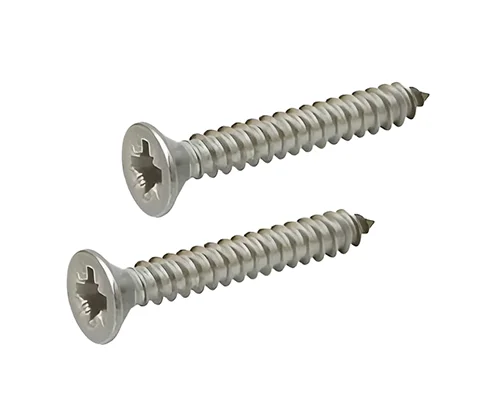

Alloy Steel Screws

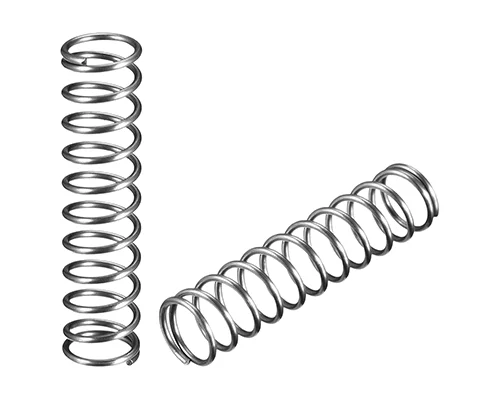

Alloy Steel Springs

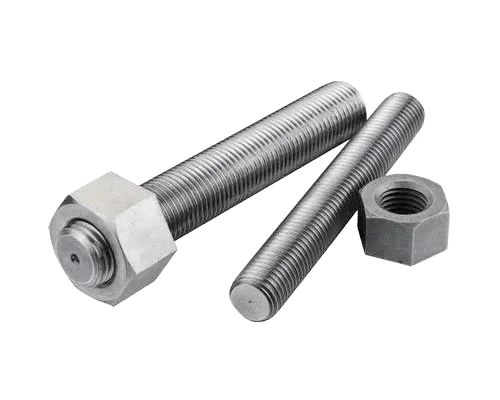

Alloy Steel Stud Bolts

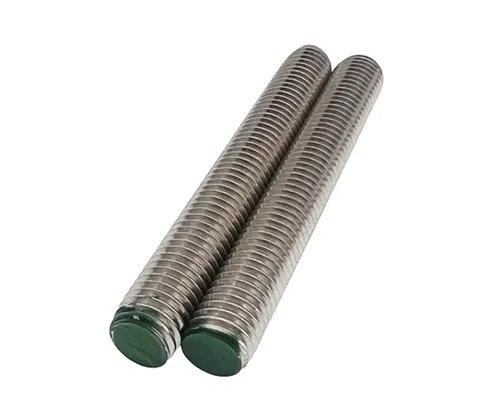

Alloy Steel Threaded Rod

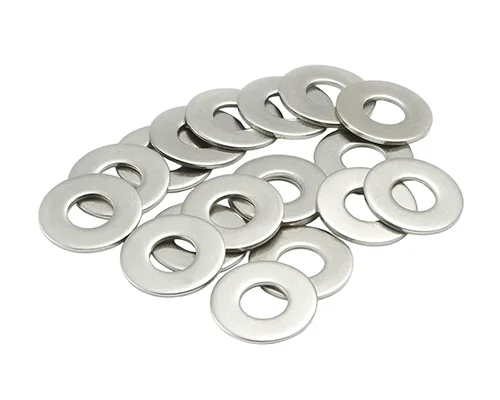

Alloy Steel Washers

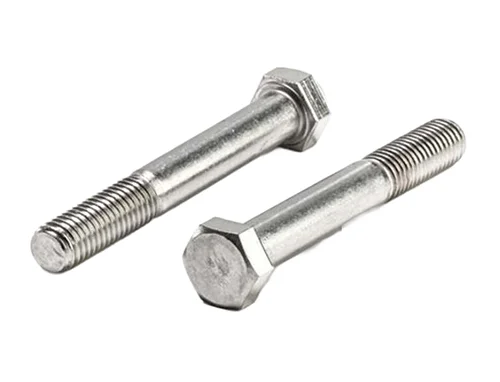

Alloy Steel Bolts

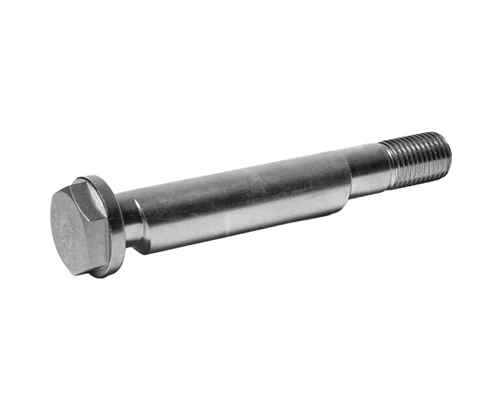

Alloy Steel Custom Bolts
Alloy Steel Fasteners, Bolts and Nuts Products
We specialize in high-strength alloy steel fasteners for critical service, offering a wide range of alloy steel fasteners grades.

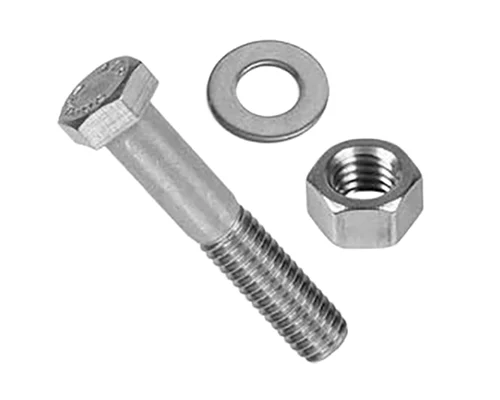

ASTM A193 B7M

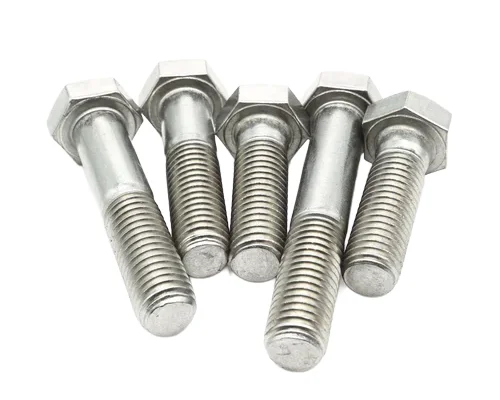

ASTM A193 B5

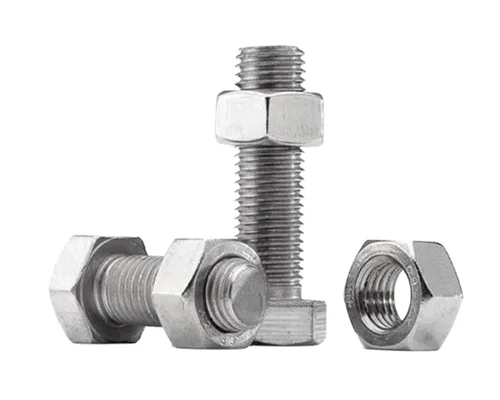

ASTM A320 L7M

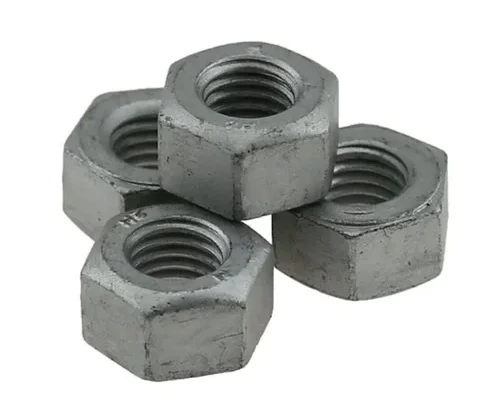

ASTM A194 Gr.2HM
Alloy Steel Fasteners Grades Chart
| AISI Grades | SAE Grades | British | European Name | Werkstoff Number |
|---|---|---|---|---|
| AISI 4130 | SAE 4130 | … | 25CrMo4 | 1.7218 |
| AISI 4140 | SAE 4140 | EN 19 | 42CrMo4 | 1.7225 |
| AISI 4340 | SAE 4340 | EN 24 | 36CrNiMo4 | 1.6511 |
| AISI 6150 | SAE 6150 | … | 51CrV4 | 1.8159 |
| AISI 8620 | SAE 8620 | … | 21NiCrMo2 | 1.6523 |
Specification of Alloy Steel Fasteners
| Specifications | Description |
|---|---|
| ASTM A193 | Specification for High Tensile Alloy Steel Bolts, Screws, Studs, Threaded Rods |
| ASTM A194 | Specification for High Tensile Alloy Steel Nuts |
| ASTM A320 | Specification for High Tensile Alloy Steel Bolting for Low Temperature Applications |
| ASTM A325 | Specification for Q & T Alloy Steel Bolts for Structural Applications |
| ASTM A490 | Specification for Q & T Alloy Steel Bolts for Structural Applications |
| ASTM A563 | Specification for High Strength Alloy Steel Nuts |
| ASTM A574 | Specification for Q & T Alloy Steel Socket Head Cap Screws |
| ISO 898-1 | Specification for Q & T High Tensile Alloy Steel Bolts, Screws & Studs |
| ISO 898-2 | Specification for Q & T High Tensile Alloy Steel Nuts |
Chemical Composition of Alloy Steel Fasteners
|
ASTM Grade |
Fastener Type |
Base Material |
Carbon (C) % Max |
Chromium (Cr) % |
Molybdenum (Mo) % |
Stabilizer/Other |
|---|---|---|---|---|---|---|
|
A193 B7 |
Bolt/Stud |
Cr-Mo Alloy Steel |
0.37–0.49 |
0.80–1.10 |
0.15–0.25 |
– |
|
A193 B7M |
Bolt/Stud |
Cr-Mo Alloy Steel |
0.37–0.49 |
0.80–1.10 |
0.15–0.25 |
Tempering reduces strength from B7 |
|

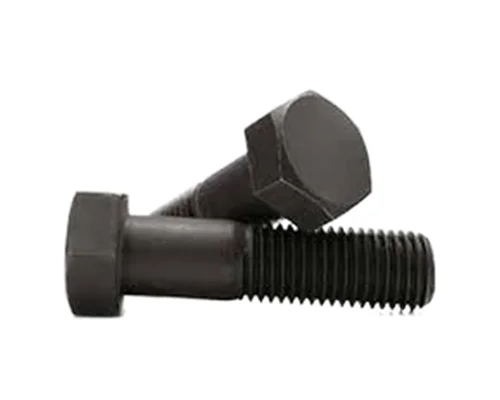

A193 B16 |
Bolt/Stud |
Cr-Mo-V Alloy Steel |
0.37–0.49 |
0.80–1.10 |
0.50–0.65 |
Vanadium (V) 0.25–0.35 |
|
A193 B5 |
Bolt/Stud |
5% Cr Steel |
0.15 max |
4.00–6.00 |
0.45–0.65 |
– |
|
A320 L7 |
Bolt/Stud |
Cr-Mo Alloy Steel |
0.37–0.49 |
0.80–1.10 |
0.15–0.25 |
Same composition as B7 |
|
A320 L7M |
Bolt/Stud |
Cr-Mo Alloy Steel |
0.37–0.49 |
0.80–1.10 |
0.15–0.25 |
Same composition as B7M |
|
A194 Gr. 2H |
Nut |
Carbon Steel (Q&T) |
0.40–0.48 |
– |
– |
– |
|
A194 Gr. 2HM |
Nut |
Carbon Steel (Q&T) |
0.40–0.48 |
– |
– |
Tempering reduces strength from 2H |
|

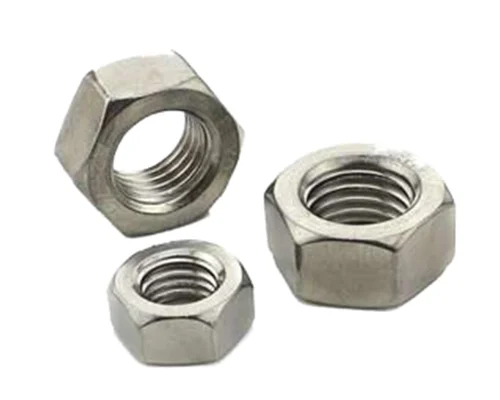

A194 Gr. 7 |
Nut |
Cr-Mo Alloy Steel (Q&T) |
0.40 max |
0.70–1.10 |
0.15–0.25 |
– |
|

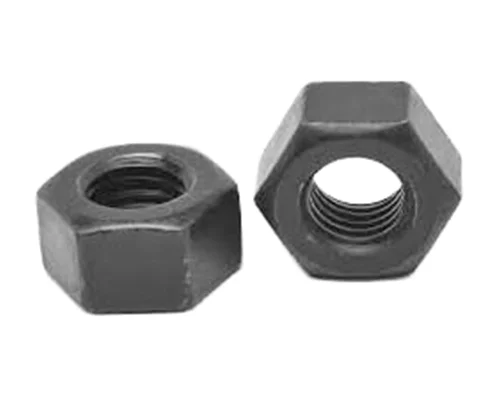

A563 |
Nut |
Carbon/Alloy Steel |
Varies by grade (DH, C, etc.) |
– |
– |
– |
Mechanical Properties of Alloy Steel Fasteners
|
ASTM Grade |
Fastener Type |
Tensile Strength (min) |
Yield Strength (min) (0.2% Offset) |
Hardness (max) |
Service Temperature |
|---|---|---|---|---|---|
|
A193 B7 |
Bolt/Stud |
125 ksi (860 MPa) |
105 ksi (725 MPa) |
HRC 35 (HB 321) |
High Temp (-20 to 850°F) |
|
A193 B7M |
Bolt/Stud |
100 ksi (690 MPa) |
80 ksi (550 MPa) |
HRC 22 (HB 235) |
High Temp (Stress Corrosion Controlled) |
|
A193 B16 |
Bolt/Stud |
125 ksi (860 MPa) |
105 ksi (725 MPa) |
HRC 35 (HB 321) |
Very High Temp (up to 1100°F) |
|
A320 L7 |
Bolt/Stud |
125 ksi (860 MPa) |
105 ksi (725 MPa) |
HRC 35 (HB 321) |
Low Temp (down to -150°F) |
|
A320 L7M |
Bolt/Stud |
100 ksi (690 MPa) |
80 ksi (550 MPa) |
HRC 22 (HB 235) |
Low Temp (Stress Corrosion Controlled) |
|
A194 Gr. 2H |
Nut |
Proof Load Tested |
N/A |
HRC 35 (HB 352) |
Companion to B7/L7 |
|
A194 Gr. 2HM |
Nut |
Proof Load Tested |
N/A |
HRC 22 (HB 235) |
Companion to B7M/L7M |
|
A194 Gr 7 |
Nut |
Proof Load Tested |
N/A |
HRC 35 (HB 352) |
Companion to B7/L7 |
Equivalent Grades of Alloy Steel Fasteners
|
ASTM Grade |
Common UNS Number |
ISO Standard (Approx.) |
European EN Standard (Approx.) |
Application Notes |
|---|---|---|---|---|
|
A193 B7 |
G41400 |
Class 10.9 |
42CrMo4 |
High Pressure/High Temp Bolting |
|
A193 B7M |
G41400 |
Class 8.8 (Lower Hardness) |
42CrMo4 |
SCC Resistance (H₂S Environments) |
|
A193 B16 |
K22045 |
Class 10.9 |
40CrMoV4-7 (1.7711) |
Very High Temperature Service |
|
A320 L7 |
G41400 |
Class 10.9 |
42CrMo4 |
Cryogenic Service Bolting |
|
A194 Gr. 2H |
G10450 |
Class 10 |
– |
Heavy Hex Nut (General High Strength) |
|
A194 Gr. 7 |
G41400 |
Class 10 |
42CrMo4 |
Companion Nut for B7/L7 |
|
A563 Gr. DH |
G10400 |
Class 10 |
– |
Structural Heavy Hex Nut |
Applications of Alloy Steel Fasteners
Alloy steel fasteners are essential in sectors demanding high mechanical strength and temperature/pressure resistance.
- Defence/ Nuclear Energy Sector
- Sea Water, Offshore & Chemical Industry
- Electrical & Agriculture Industry
- Metric Alloy Steel Hex Bolts for Power Generation
- Alloy Steel Stud Bolt for Construction
- High quality Alloy Steel Petrochemical Fasteners
- Engineering & Aerospace Industry
- High Strength Alloy Steel Bolts and Nuts for Automotive industry
- Alloy Steel Bolts for Oil & Gas Industries
- Heavy duty Alloy Steel Fasteners for Heat Exchangers
- Alloy Steel Nut Bolt suitable for Off-Shore Oil Drilling
Alloy Steel Bolts Price List
| Products | FOB Price US $ |
|---|---|
| High Strength Alloy Steel Hex Allen Key Bolt M8*25 DIN 912 | US $0.02/ Piece |
| Alloy Steel Hex Bolts Fastener | US $1.00-$1.50/ Set |
| ASTM A354 Heavy Hex Bolt | US $0.02-$0.05/ Piece |
| M45 Bolt Scm435 M36 M42 M45 352 Alloy Steel Hexagon Head Bolt | US $0.01-$0.09/ Piece |
Contact us via phone or email for complete details and our competitive pricing. We encourage you to always compare our Alloy steel fasteners price with other Alloy Steel Bolts manufacturers in India.
