Bolts made of high-strength, corrosion-resistant stainless steel, ASTM A193 Grade B8C bolts are made for applications requiring reliable performance in harsh conditions. These bolts are frequently used in sectors where resistance to corrosion and chemicals is essential, such as chemical processing, medicines, and pulp and paper. ASTM A193 B8C bolts are made of austenitic stainless steel grade 347 and have excellent mechanical strength and corrosion resistance, making them ideal for a variety of applications. To fulfil ASTM requirements, these bolts go through rigorous testing, guaranteeing their dependability and durability under challenging circumstances. Bolts made of ASTM A193 Grade B8C exhibit remarkable strength and resistance to corrosion, making them a reliable and durable fastening option for demanding applications.
Quick Section Links
- ASTM A193 B8C Bolts Specifications
- Dimensions Of ASTM A193 B8C Bolts
- ASTM A193 B8C Bolts Weight Chart
- ASTM A193 B8C Bolts Equivalent Grade
- ASTM A193 B8C Bolts Inventory
- ASTM A193 B8C Stud Bolts Dimensions
- ASTM A193 B8C Bolts Chemical Composition
- ASTM A193 B8C Bolts Mechanical Properties
- Available Stock of ASTM A193 B8C Bolts
- Applications of ASTM A193 B8C Bolts
ASTM A193 B8C Bolts Specifications
| Specification | ASTM A193 / ASME SA193 |
| Dimensions | ASME B18.2.1, B18.3 |
| Size | M02 to M160, Custom Sizes |
| Lengtd | 3 mm to 200 mm |
| tdreads | METRIC, BSW, BSF, UNC, UNF or as required |
| In Form of | Hex, Square, Round, tdreading as per Gauge Etc. |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Surface finishing | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Surface Coating |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |

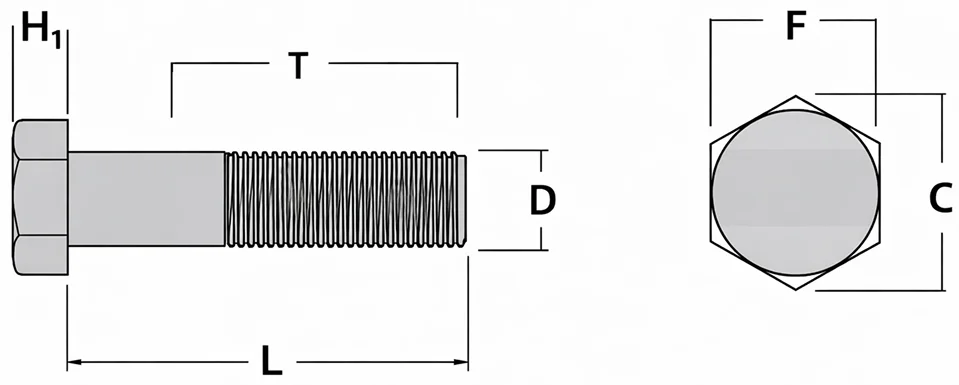

Dimensions Of ASTM A193 B8C Bolts
| **All measurements in millimeters** | ||||||||
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD tdICKNEASTM A193 | ACROASTM A193 tdE FLATS | ACROASTM A193 CORNERS | ||||
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
“Contact Jade Special Metals today with your requirement for ASTM A193 B8C Bolts. We assure you of the best quote.
ASTM A193 B8C Bolts Weight Chart
| MM tdREADS AS PER IS 1363/67 | ||||||||||
| APPROXIMATE WEIGHT IN KGS FOR 100 NOS | ||||||||||
| LENGtd | DIAMETER | |||||||||
| M 5 | M 6 | M 8 | M 10 | M 12 | M 14 | M 16 | M 18 | M 20 | M 22 | |
| 16 mm | 0.448 | 0.743 | 1.590 | 3.211 | ||||||
| 20 mm | 0.598 | 0.812 | 1.711 | 3.411 | 4.892 | |||||
| 25 mm | 0.660 | 0.897 | 1.871 | 3.660 | 5.252 | 8.170 | ||||
| 30 mm | 0.737 | 1.010 | 2.070 | 3.912 | 5.574 | 9.690 | 10.707 | 18.657 | ||
| 35 mm | 0.804 | 1.120 | 2.271 | 4.223 | 5.974 | 10.000 | 11.416 | 16.026 | 19.608 | |
| 40 mm | 0.881 | 1.230 | 2.470 | 4.533 | 6.410 | 10.288 | 12.107 | 16.667 | 20.747 | |
| 45 mm | 0.958 | 1.340 | 2.671 | 4.840 | 6.859 | 10.504 | 12.821 | 17.241 | 21.739 | |
| 50 mm | 1.030 | 1.450 | 2.870 | 5.155 | 7.299 | 11.261 | 13.624 | 17.857 | 22.727 | 28.409 |
| 55 mm | 1.560 | 3.071 | 5.464 | 7.740 | 11.628 | 14.409 | 18.868 | 23.810 | 30.120 | |
| 60 mm | 1.670 | 3.270 | 5.774 | 8.183 | 12.255 | 15.244 | 20.000 | 25.126 | 32.051 | |
| 65 mm | 1.781 | 3.472 | 6.083 | 8.621 | 12.626 | 16.026 | 21.008 | 26.455 | 34.014 | |
| 70 mm | 1.890 | 3.671 | 6.394 | 9.058 | 12.987 | 16.835 | 22.124 | 27.778 | 35.461 | |
| 75 mm | 2.000 | 3.873 | 6.702 | 9.506 | 13.228 | 17.606 | 23.256 | 29.070 | 39.063 | |
| 80 mm | 2.111 | 4.072 | 7.013 | 10.000 | 13.889 | 18.248 | 24.510 | 30.303 | 40.000 | |
| 90 mm | 4.472 | 7.634 | 10.917 | 14.925 | 19.841 | 26.042 | 33.113 | 41.667 | ||
| 100 mm | 4.873 | 8.251 | 11.820 | 16.340 | 21.459 | 27.778 | 35.714 | 46.296 | ||
| 110 mm | 8.881 | 12.723 | 17.730 | 23.041 | 31.250 | 38.168 | 47.170 | |||
| 120 mm | 9.506 | 13.624 | 18.797 | 24.631 | 32.895 | 40.984 | 50.000 | |||
| 130 mm | 10.101 | 14.535 | 20.000 | 26.316 | 34.722 | 43.478 | 52.632 | |||
| 140 mm | 10.707 | 15.432 | 20.833 | 27.933 | 35.461 | 46.296 | 55.556 | |||
| 150 mm | 11.312 | 16.340 | 22.222 | 29.412 | 37.594 | 48.544 | 58.824 | |||
| 160 mm | 11.905 | 17.241 | 24.272 | 31.056 | 40.984 | 50.505 | 61.728 | |||
| 170 mm | 12.500 | 18.116 | 32.680 | 53.191 | 64.935 | |||||
| 180 mm | 13.123 | 19.011 | 26.882 | 34.247 | 55.556 | 67.568 | ||||
| 190 mm | 13.736 | 19.920 | 35.971 | 58.140 | 70.423 | |||||
| 200 mm | 14.327 | 20.833 | 29.586 | 37.594 | 49.020 | 60.976 | 73.529 | |||
| 220 mm | 15.528 | 22.624 | 40.650 | 65.789 | 79.365 | |||||
| 240 mm | 16.722 | 24.510 | 43.860 | 71.429 | 84.746 | |||||
| 250 mm | 17.301 | 25.381 | 45.455 | 74.627 | 87.719 | |||||
| 260 mm | 17.921 | 26.316 | 47.170 | 76.923 | 90.909 | |||||
| 280 mm | 19.157 | 28.090 | 50.505 | 81.967 | 98.039 | |||||
| 300 mm | 20.325 | 29.940 | 53.763 | 87.719 | 104.167 | |||||
| 320 mm | 31.646 | 56.818 | 92.593 | |||||||
| 340 mm | 33.557 | 60.241 | 98.039 | |||||||
| 360 mm | 35.211 | 63.291 | 104.167 | |||||||
| 380 mm | 37.037 | 66.667 | 108.696 | |||||||
| 400 mm | 39.063 | 69.444 | 113.636 | |||||||
ASTM A193 B8C Bolts Equivalent Grade
| Grade | Tensile Class | Raw Material Description |
| B8C | Class 1 | AISI 347 Stainless Steel, Carbide Solution Treated |
| B8C | Class 2 | AISI 347 Stainless Steel, Carbide Solution Treated and Strained Hardened |
ASTM A193 B8C Bolts Inventory
ASTM A193 B8C Bolts

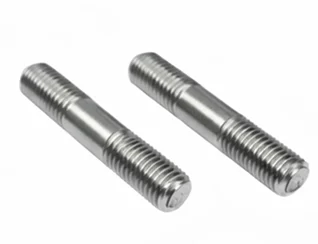

ASTM A193 B8C Stud Bolts

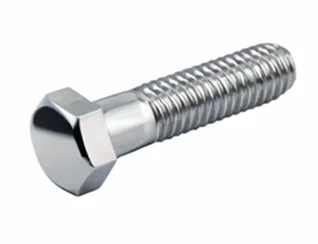

ASTM A193 B8C Hex Bolts
ASTM A193 B8C Stud Bolts Dimensions
| Diameter | Diameter in mm | Diameter in inch | Nut Sizes |
| M12 | 12 | 0.4724 | 19 |
| M10 | 10 | 0.3937 | 17 |
| M14 | 14 | 0.5512 | 22 |
| M18 | 18 | 0.7087 | 27 |
| M16 | 16 | 0.6299 | 24 |
| M20 | 20 | 0.7874 | 30 |
| M24 | 24 | 0.9449 | 36 |
| M22 | 22 | 0.8661 | 32 |
| M27 | 27 | 1.063 | 41 |
| M33 | 33 | 1.2992 | 50 |
| M30 | 30 | 1.1811 | 46 |
| M36 | 36 | 1.4173 | 55 |
| M42 | 42 | 1.6535 | 65 |
| M39 | 39 | 1.5354 | 60 |
| M45 | 45 | 1.7717 | 70 |
| M52 | 52 | 2.0472 | 80 |
| M48 | 48 | 1.8898 | 75 |
| M56 | 56 | 2.2047 | 85 |
| M64 | 64 | 2.5197 | 95 |
| M60 | 60 | 2.3622 | 90 |
| M68 | 68 | 2.6772 | 100 |
| M76 | 76 | 2.9921 | 110 |
| M72 | 72 | 2.8346 | 105 |
| M80 | 80 | 3.1496 | 115 |
| M90 | 90 | 3.5433 | 130 |
| M85 | 85 | 3.3464 | 120 |
| M100 | 100 | 3.937 | 145 |
| M160 | 160 | 6.2992 | 230 |
| M125 | 125 | 4.9212 | 180 |
| M110 | 110 | 4.3307 | 155 |
| M140 | 140 | 5.5118 | 200 |
ASTM A193 B8C Bolts Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni |
| ASTM A193 B8C | 0 – 0.08% | 0 – 2.00% | 0 – 1.0% | 0 – 0.045% | 0 – 0.030% | 19.0 – 9.0% | 12.0 – 0% |
ASTM A193 B8C Bolts Mechanical Properties
| Grade | Diameter | Tensile Strength | Yield Strength | Elongation | Reduction | Hardness |
| Grade B8C | M20 and under | 860 | 690 | 12 | 35 | 321 HBW or 35 HRC |
| Grade B8C | M20 to M24, inclusive | 690 | 550 | 20 | 45 | 321 HBW or 35 HRC |
| Grade B8C | M24 to M30, inclusive | 655 | 450 | 25 | 45 | 321 HBW or 35 HRC |
| Grade B8C | M30 to M36, inclusive | 620 | 345 | 30 | 45 | 321 HBW or 35 HRC |
Available Stock of ASTM A193 B8C Bolts
- ASTM A193 B8C SS Step Bolt
- ASME SA 193 B8C SS J-Bolts
- ASME SA 193 B8C Hex Domed Cap Nuts
- ASTM A193 B8C SS Hex Head Bolt
- Stainless Steel B8C Shoulder Bolt
- ASME SA 193 B8C Castle Bolts
- ASTM A193 B8C Stud Bolts
- ASTM A193 B8C Foundation Bolts
- AISI 4140 Carriage Bolt
- ASTM A193 B8C Locking Bolts
- ASME SA 193 B8C Eye Bolt
- ASTM A193 B8C Lag Bolt

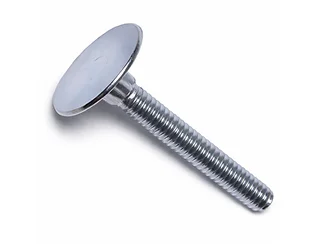

- ASTM A193 B8C SS Elevator Bolt
- AISI 4140 ASTM A193 B8C Self locking Bolts
- ASME SA 193 B8C Hex Domed Cap Nuts
- ASME SA 193 B8C Eye Bolt
- Stainless Steel B8C Shoulder Bolt
- ASTM A193 B8C Stud Bolts
- AISI 4140 Carriage Bolt
- AISI 4140 ASTM A193 B8C Self locking Bolts
- ASTM A193 B8C Foundation Bolts
- ASTM A193 B8C SS Hex Head Bolt
- ASTM A193 B8C Lag Bolt
- ASME SA 193 B8C Castle Bolts
- ASME SA 193 B8C SS J-Bolts
- ASTM A193 B8C SS Elevator Bolt
- ASTM A193 B8C Locking Bolts
- ASTM A193 B8C SS Step Bolt
Applications of ASTM A193 B8C Bolts
- Pipeline Engineering
- Marine Industry
- Chemical Industry
- Oil & gas industry
- Mechanical Engineering
- Plant Engineering
- Petrochemical Industry
- Power Industry
- Aerospace
- Food Processing Industry
We maintain ready stock of Stainless Steel ASME SA193 B8C Head Bolts, ASTM A193 B8C Draw Bolts, ASTM A193 B8C Hex Head Bolt, Stainless Steel ASME SA193 B8C Head Bolts, ASTM A193 B8C Square Head Bolts. Get in touch with us with your requirement for quick quote.
