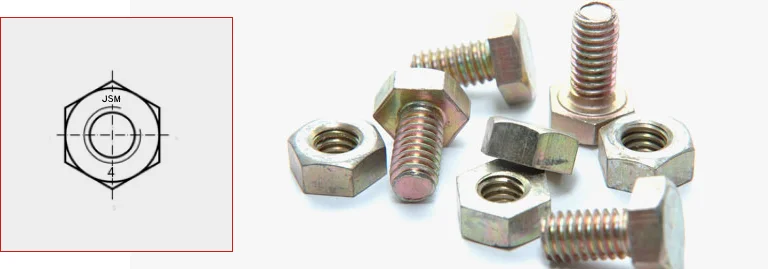

ASTM A194 Grade 4 Specification for High Strength Nuts and Threaded Fasteners
ASTM A194 Grade 4 is a standard specification which is related to high-strength nuts and other internally threaded fasteners which are manufactured with the help of carbon molybdenum steel. Such Grade 4 nuts could be forged either by hot forging, cold forging, or machined out of a bar stock and then subjected to the appropriate heat treatment. ASTM A194 standard defines the required chemical content, heat treatment, hardness degree, proof load and other criteria of Grade 4 nuts. ASTM A194 Grade 4 nuts could be used in the service application of high-pressure and/or high-temperature service.
These nuts are to meet the American National Standard Heavy Hex Series (ANSI B 18.2.2) unless otherwise indicated to the contrary. Standard thread fit The UNC Series Class 2B fit is specified to the nominal size through to and including 1 inch, and a size larger than 1 inch may be made to either the UNC Series Class 2B fit or the 8 UN Series Class 2B fit.
These nuts are high-strength Grade 4 and are easy to find and they may serve as a replacement of ASTM A563 Grade DH nuts, especially in a situation when DH nuts are hard to find in certain diameters and finishes.
The general standard on ASTM A194 encompasses numerous grades of alloy and stainless steel bolting that are used in high-pressure and high-temperature settings and special requirements. There are a number of grades of ferritic and austenitic stainless steels encompassed under this standard, and designations include B5, B6, B7, B8 and B8M.
Looking to buy Carbon Steel Nuts?
Check price of A194 Gr 2H, A307,A325 & F3125 Bolts
Weight Calculator
ASTM A194 4 Nuts, ASTM A194 Grade 4 Bolt, ASTM A194 Grade 4 Heavy Hex Nuts, ASTM A194 Alloy Steel Gr. 4 Nuts Manufacturer & Supplier
Jade Alloys is among the major ASTM A194 Alloy Steel Gr. 4 Nuts and Alloy Steel Nuts manufacturers and suppliers of high-quality fasteners to the international market. Our ASTM A194 Grade 4 Nuts are made in compliance with the national and international requirements of quality, and the expectations of the clients are continually satisfied.
“Contact Jade Special Metals today with your requirement for ASTM A194 GR. 4 Nuts. We assure you of the best quote.
ASTM A194 Grades
Quick Section Links
- Types of ASTM A194 Grade 4 Nuts
- Specification of ASTM A194 GR. 4 Nuts
- ASTM A194 Grade 4 Chemical Composition
- Mechanical Properties of ASTM A194 Grade 4 Hex Nuts
- A194 Grade 4 Nuts Sizes
- A194 Gr 4 Hex Nuts Dimensions
- ASTM A194 GR. 4 Nuts Inventory
- Available Stock of ASTM A194 GR. 4 Nuts
- Applications of ASTM A194 Grade 4 Nuts
- ASTM A194 4 Nuts Price
Types of ASTM A194 Grade 4 Nuts
ASME SA194 Gr 4 Flange Lock Nut
ASME SA194 Grade 4 Heavy Hex Nut
ASTM A194 Grade 4 Square Nut
SA194 Grade 4 Lock Nut
A194 Gr 4 Hex Nut
A194 Grade 4 Nylon Lock Nut
Specification of ASTM A194 GR. 4 Nuts
| Standard | : | ASTM / ASME, A194 / SA194 |
| Dimension | : | ASTM,DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Nut Size | : | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Heat Treatment | : | Annealing, Stress Relieving, Case Hardening, Quenching and Tempering. |
| Finish | : | Plain / Zinc plated / Hot dip galvanised. |
| Type | : | Hex Nut, Heavy Hex Nut, Lock Nut, Nylock Nut, Weld Nut, Dome Nut, Flange Nut, Square Nut, Eye Nut etc. |
ASTM A194 Grade 4 Chemical Composition
|
Property class |
Chemical composition |
|||||||||
|
C. |
Mn. |
Si. |
P. |
S. |
Cr. |
Ni. |
Mo. |
V. |
Ti. |
|
|
4 |
0.40-0.50 |
0.70-0.90 |
0.15-0.35 |
0.035 |
0.040 |
– |
– |
0.20-0.30 |
– |
– |
Mechanical Properties of ASTM A194 Grade 4 Hex Nuts
|
Class |
Diameter, [mm] |
Brinell Hardness |
Rockwell Hardness |
|
|
C Scale |
B Scale |
|||
|
4 |
All |
248-327 |
24-35 |
– |
A194 Grade 4 Nuts Sizes

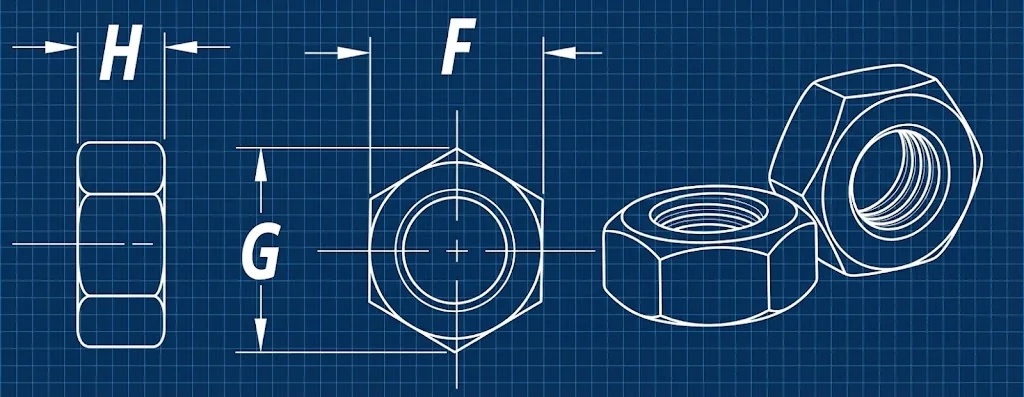

| Nominal or Basic Major Diameter of SA 194 gr 4 Nut Thread | ASTM A194 Grade 4 Nuts Width Across Flats (F) | Width Across Corners (G) | Thickness of A194 gr 4 Hex Nuts (H) | ||||||
|---|---|---|---|---|---|---|---|---|---|
