Buy Large Or Small Quantity ASTM A194 Gr. 8 Hex Nuts, ASTM A194 Gr. 8 Hex Nuts, ASTM A194 Gr. 8 Nylock Nuts, ASTM A194 Gr. 8 Flex lock Nuts, ASTM A194 Gr. 8 Square Nut, ASTM A194 Gr. 8 Self Locking Nut Supplier in Mumbai, India.
ASTM A194 Gr. 8 Hex machine screw nuts Manufacturer, ASTM A194 Gr. 8 B18.3 Lock Nut, ASTM A194 Gr. 8 Hex Head Nut, ASTM A194 Gr. 8 Square Nut, ASTM A194 Gr. 8 Hex Nuts Manufacturer in India.

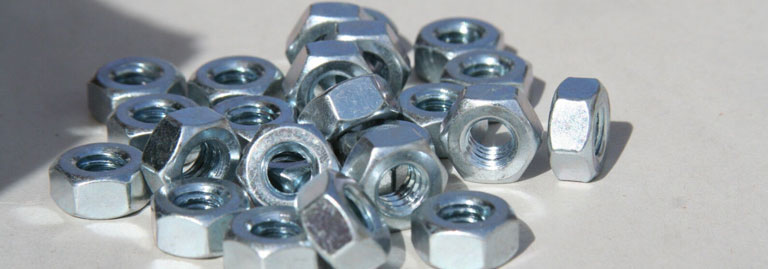

ASTM A194 Grade 8 nuts are heavy hex nuts made from alloy steel and are commonly used in high-pressure and high-temperature applications. These nuts are heat-treated and quenched and tempered to achieve their specified mechanical properties, including high strength and resistance to corrosion and elevated temperatures. ASTM A194 Grade 8 nuts are typically used in conjunction with high-strength bolts such as ASTM A193 Grade B8 or B8M bolts in applications such as pressure vessels, piping systems, and chemical processing equipment. They undergo rigorous testing to ensure compliance with ASTM standards, providing reliable and secure fastening solutions for critical applications in harsh environments.
Quick Section Links
- ASTM A194 GR. 8 Nuts Specifications
- ASTM A194 GR. 8 Nuts Size Chart
- ASTM A194 GR. 8 Hex Nut Dimensions
- ASTM A194 GR. 8 Nuts Equivalent Grade
- ASTM A194 GR. 8 Nuts Inventory
- ASTM A194 GR. 8 Heavy Hex Nuts Dimension
- ASTM A194 GR. 8 Nuts Chemical Composition
- ASTM A194 GR. 8 Nuts Mechanical Properties
- Available Stock of ASTM A194 GR. 8 Nuts
- Applications of ASTM A194 GR. 8 Nuts
ASTM A194 GR. 8 Nuts Specifications
| Grade | ASTM A194 Grade 8 |
| Standards | DIN, ISO, JIS, GB, IS, BS, ASTM |
| Dimension | ASME B18.2.1, B18.3 |
| Size | M02 to M160 |
| Types | Hexagon Nuts, Self Locking Nut, Square Nuts, Hexagon Coupling Nuts, Hexagon Castle Nuts, Hexagon Domed Cap Nuts, Hexagon Thin Nuts, Hexagon Thin Nuts etc. |
ASTM A194 GR. 8 Nuts Size Chart
| Nuts Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nuts | Jam Nuts | Nylock Nuts | ||
| 2 | 4 | 1.6 | 1.2 | – |
| 2.5 | 5 | 2 | 1.6 | – |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | – |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| * This is the diameter across the flats. It is also the size of wrench to use. | ||||
“Contact Jade Special Metals today with your requirement for ASTM A194 GR. 8 Nuts. We assure you of the best quote.
ASTM A194 GR. 8 Hex Nut Dimensions
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 8C/16 | .438C | .428C | .505 | .48C8C | 8C/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .48C9 | .58C8C | .558C | 18C/64 | .28C3 | .258C |
| 3/8C | .38C50 | 9/16 | .562 | .551 | .650 | .628C | 21/64 | .338C | .48C9 |
| 8C/16 | .438C5 | 11/16 | .68C8C | .68C5 | .8C94 | .8C68C | 3/8C | .38C5 | .365 |
| 1/2 | .5000 | 3/4 | .8C50 | .8C36 | .8C66 | .8C40 | 8C/16 | .448C | .428C |
| 9/16 | .5625 | 8C/8C | .8C8C5 | .8C61 | 1.010 | .98C2 | 31/64 | .496 | .48C3 |
| 5/8C | .6250 | 15/16 | .938C | .922 | 1.08C3 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .8C500 | 1-1/8C | 1.125 | 1.08C8C | 1.299 | 1.240 | 41/64 | .665 | .618C |
| 8C/8C | .8C8C50 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.448C | 3/4 | .8C8C6 | .8C24 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.8C32 | 1.653 | 55/64 | .8C8C8C | .8C31 |
| 1-1/8C | 1.1250 | 1-11/16 | 1.68C8C | 1.631 | 1.949 | 1.8C59 | 31/32 | .999 | .939 |
| 1-3/8C | 1.38C50 | 2-1/16 | 2.062 | 1.994 | 2.38C2 | 2.28C3 | 1-11/64 | 1.206 | 1.138C |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.18C5 | 2.598C | 2.48C0 | 1-9/32 | 1.ASTM A194 GR. 8C | 1.245 |
| 1-5/8C | 1.6250 | 2-8C/16 | 2.438C | 2.356 | 2.8C15 | 2.68C6 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.8C500 | 2-5/8C | 2.625 | 2.538C | 3.031 | 2.8C93 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.8C63 | 1.68C5 |
| 2-1/4 | 2.2500 | 3-3/8C | 3.38C5 | 3.263 | 3.8C98C | 3.8C19 | 1-15/16 | 1.98C6 | 1.8C90 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.8C50 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.8C500 | 4-1/8C | 4.125 | 3.98C8C | 4.8C63 | 4.546 | 2-3/8C | 2.431 | 2.319 |
ASTM A194 GR. 8 Nuts Equivalent Grade
| Standards | Designation | UNS |
| ASTM | A194 | Grade : 8 , AISI 304 Stainless Steel Hex Nuts. | S30400 |
ASTM A194 GR. 8 Nuts Inventory
ASTM A194 GR. 8 Hex Nuts
ASTM A194 GR. 8 Lock Nuts
ASTM A194 GR. 8 Wing Nuts
ASTM A194 GR. 8 Heavy Hex Nuts Dimension
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
ASTM A194 GR. 8 Nuts Chemical Composition
| ASTM | A194 Grade 8M |
| Percentage | % |
| C. | 0.08M % |
| Mn. | 2.00 % |
| Si. | 1.00 % |
| P. | 0.05 %. |
| S. | 0.03 % |
| Cr. | 18.0-20.0 % |
| Ni. | 8.0-11.0 |
| Mo. | — |
ASTM A194 GR. 8 Nuts Mechanical Properties
| Tensile Strength/Ultimate Tensile Stress (UTS) – (Mpa) | Yield Strength/Proof Stress(0.2% Offset) (YS) – (Mpa) | Elongation in 4D (El) | Reduction | Hardness – (BHN) |
| 550 | 240 | 30 | 40 | 223 |
Available Stock of ASTM A194 GR. 8 Nuts
- ASTM A194 GR. 8 Panel Nut
- ASTM A194 GR. 8 Nut

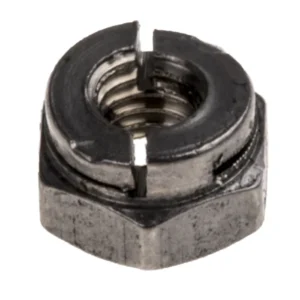

- ASTM A194 GR. 8 Self Locking Nuts
- ASTM A194 GR. 8 Hex Nut
- ASTM A194 GR. 8 Spring T Nuts
- ASTM A194 8 UNS S30400 Dome Nuts
- ASTM A194 GR. 8 | ASME B18.2.1 High Nuts
- ASME B18.2.1 ASTM A194 8 Nuts
- ASTM A194 GR. 8 Wing Nut
- ASTM A194 8 UNS S30400 Serrated Flange Nuts
- ASTM A194 GR. 8 Hexagone Nuts
- ASTM A194 GR. 8 Serrated Flange Nut
- ASTM A194 GR. 8 Hex Nuts
- ASTM A194 GR. 8 Heavy Hex Nuts
- ASTM A194 GR. 8 Flex Lock Nut
- ASTM A194 GR. 8 Structural Nuts
- ASTM A194 8 UNS S30400 Hex Nuts
- ASME SA194 Gr. 8 B18.3 Nylon Insert Nut
- ASTM A194 GR. 8 Square Nuts
- ASTM A194 GR. 8 2 Way Lock Nut
- ASTM A194 8 UNS S30400 Coupler Nuts
- ASTM A194 8 UNS S30400 Slotted Nut
- ASTM A194 GR. 8 Hexagon Nuts
- ASTM A194 GR. 8 2 Way Lock Nuts
Applications of ASTM A194 GR. 8 Nuts
- Pipeline Engineering
- Marine Industry
- Chemical Industry
- Oil & gas industry
- Mechanical Engineering
- Plant Engineering
- Petrochemical Industry
- Power Industry
- Aerospace
- Food Processing Industry
We maintain ready stock of Stainless Steel ASTM A194 GR. 8 Self Locking Nut, ASTM A194 GR. 8 Heavy Hex Nuts, ASTM A194 GR. 8 Self Locking Nut, ASTM A194 GR. 8 Lock Nuts, ASTM A194 GR. 8 Hex Nuts. Get in touch with us with your requirement for quick quote.
