The ASTM A307 standard defines the chemical and mechanical standards of some externally threaded fasteners made of carbon steel such as bolts, studs, and threaded rods. This ASTM Standard stipulates a minimum tensile strength of 60 ksi of these ASTM A307 Fasteners. First, the standard identified three grades (A, B and C), but Grade C was later replaced by ASTM F1554 Grade 36. It should be mentioned that the A307 standard is not used in machine screws, thread cutting/forming screws, mechanical expansion anchors, and others. Under this specification, when fasteners are to be tested, sampled specimen should meet specified values related to chemical composition, hardness, tensile strength, yield point, elongation, and dimensions.
ASTM A307 Hex Bolts, Heavy Hex Bolts, Fasteners, Studs, Socket Head Cap Screws, Threaded Rods Manufacturer & Supplier in India
Jade Special Metals is a major manufacturer and distributor in India of a variety of ASTM A307 Bolts and other related fasteners such as Long Bolts, 12 point Bolts and Studs (All-thread, Double-End etc.). These are available in sizes of 1/2 to 3 1/2 with matching nuts (Hex Nuts, Heavy Hex Nuts) and full threaded rods.
Externally threaded carbon steel bolts such as Hex Cap Screws (machine bolts) and Studs are speculated in the ASTM A307 specification, which has a tensile strength requirement of 60 ksi minimum. These are ASTM A307 fasteners that are essential in high-torque flanged connections in the petroleum and chemical sectors, and operate at all common thread pitch (UNC, UNF, 8UN) as well as metric diameters. Our specialty is hundreds of combinations of material, plating, and thread, including customer-made A307 bolts to particular customer drawings, even on a critical Superalloy application.
ASTM A307 Grades
| 307A |  |
Headed bolts, threaded rods and bent bolts intended for general applications. |
| 307B |  |
Heavy hex bolts and studs intended for flanged joints in piping systems with cast iron flanges. |
| 307C |  |
Non-headed anchor bolts, either bent or straight, intended for structural anchorage purposes. The end of a grade C anchor bolt intended to project from the concrete will be painted green for identification purposes. Permanent marking is a supplemental requirement. |
Table of Contents
Types of ASTM A307 Fasteners
ASTM A307 Hex Cap Screws

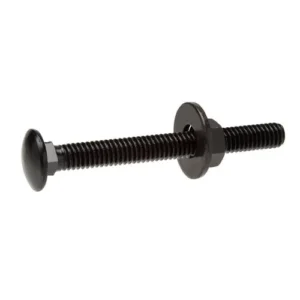

ASTM A307 Carriage Bolts
ASTM A307 Heavy Hex Bolts

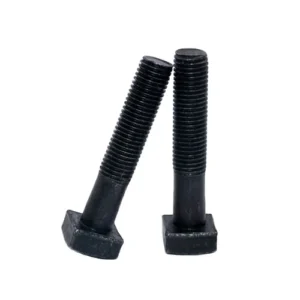

ASTM A307 Square Head Bolts
ASTM A307 Stud Bolts
ASTM A307 Hex Bolts
ASTM A307 Anchor Bolts
ASTM A307 Threaded Rods
ASTM A307 Eye Bolts
ASTM A307 U-Bolts
ASTM A307 Bolts Specifications
| Property | Details |
|---|---|
| Specification | ASTM A307 / ASME SA307 |
| Dimensions | ASME B18.2.1, B18.3 |
| Size | M02 to M160, Custom Sizes |
| Lengtd | 3 mm to 200 mm |
| tdreads | METRIC, BSW, BSF, UNC, UNF or as required |
| In Form of | Hex, Square, Round, tdreading as per Gauge Etc. |
| Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Surface finishing | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Surface Coating |
All surface finishes offered including Geomet & PTFE, Galvanised, Zinc, Electroless Nickel, Sherardized, Dacromet |
| Packing | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
ASTM A307 Bolts Chemical Composition
| Element | Grade A | Grade B |
|---|---|---|
| Carbon, max | 0.29% | 0.29% |
| Manganese, max | 1.20% | 1.20% |
| Phosphorus, max | 0.04% | 0.04% |
| Sulfur, max | 0.15% | 0.05% |
ASTM A307 Bolts Mechanical Properties
| Grade | Tensile, ksi | Yield, min, ksi | Elong %, min |
|---|---|---|---|
| A | 60 min | — | 18 |
| B | 60 – 100 | — | 18 |
| C* | 58 – 80 | 36 | 23 |
ASTM A307 Bolts Dimensions Chart
| Grade A Bolts Diameter | D | F | C | H | |||||
|---|---|---|---|---|---|---|---|---|---|
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 3/8 | 0.388 | 9/16 | 0.562 | 0.544 | 0.650 | 0.620 | 1/4 | 0.268 | 0.226 |
| 1/2 | 0.515 | 3/4 | 0.750 | 0.725 | 0.866 | 0.826 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 15/16 | 0.938 | 0.906 | 1.083 | 1.033 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 1-7/8 | 1.875 | 1.812 | 2.165 | 2.066 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-3/8 | 3.375 | 3.262 | 3.897 | 3.719 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 1-21/32 | 1.708 | 1.479 |
| Dimensions per ASME B18.2.1 1996 | |||||||||
“Contact Jade Special Metals today with your requirement for ASTM A307 Bolts. We assure you of the best quote.
A307 Grade B Threaded Rod Size Chart
| Thread Size | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Major Dia | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 | |
| Thread Pitch (mm) | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | |
| Tapping Drill Size | 2.5 | 3.3 | 4.2 | 5 | 5.8 | 8.5 | 10.2 | 14 | 17.5 | |
ASTM A307 Bolt Torque Chart
| Bolt Size | 1⁄4 | 3⁄8 | 5⁄16 | 7⁄16 | 11⁄8 | 9⁄16 | 1⁄2 | 5⁄8 | 7⁄8 | 3⁄4 | 1 | 11⁄4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TPI | 20 | 16 | 18 | 14 | 7 | 12 | 13 | 11 | 9 | 10 | 8 | 7 | |
| Proof Load (lbs)1 | 1,053 | 2,567 | 1,735 | 3,521 | 25,271 | 6,028 | 4,700 | 7,485 | 15,301 | 11,062 | 20,071 | 32,093 | |
| Clamp Load (lbs)2 | 790 | 1,925 | 1,302 | 2,640 | 18,953 | 4,521 | 3,525 | 5,614 | 11,476 | 8,297 | 15,053 | 24,070 | |
| Tightening Torque (ft lbs) | Galv+Waxed | 2 | 6 | 3 | 10 | 178 | 21 | 15 | 29 | 84 | 52 | 125 | 251 |
| Galv | 4 | 15 | 8 | 24 | 444 | 53 | 37 | 73 | 209 | 130 | 314 | 627 | |
| Plain | 3 | 12 | 7 | 19 | 355 | 42 | 29 | 58 | 167 | 104 | 251 | 501 | |
| Bolt Size | 13⁄8 | 13⁄4 | 11⁄2 | 2 | 33⁄4 | 21⁄2 | 21⁄4 | 23⁄4 | 31⁄4 | 3 | 31⁄2 | 4 | |
| TPI | 6 | 5 | 6 | 41⁄2 | 4 | 4 | 41⁄2 | 4 | 4 | 4 | 4 | 4 | |
| Proof Load (lbs)1 | 38,254 | 62,928 | 46,534 | 82,800 | 3,19,939 | 1,32,480 | 1,07,640 | 1,63,282 | 2,35,152 | 1,97,726 | 2,75,890 | 3,66,970 | |
| Clamp Load (lbs)2 | 28,690 | 47,196 | 34,900 | 62,100 | 2,39,954 | 99,360 | 80,730 | 1,22,461 | 1,76,364 | 1,48,295 | 2,06,917 | 2,75,227 | |
| Tightening Torque (ft lbs) | Galv+Waxed | 329 | 688 | 436 | 1,035 | 7,499 | 2,070 | 1,514 | 2,806 | 4,777 | 3,707 | 6,035 | 9,174 |
| Galv | 822 | 1,721 | 1,091 | 2,588 | 18,746 | 5,125 | 3,784 | 7,016 | 11,941 | 9,268 | 15,088 | 22,936 | |
| Plain | 657 | 1,377 | 873 | 2,070 | 14,997 | 4,140 | 3,027 | 5,613 | 9,553 | 7,415 | 12,070 | 18,348 | |
Applications of ASTM A307 Bolts
- Covered Bridges
- Marine Applications
- Pipe Flange
- Anchoring Mechanisms
- Generic Application
Related Products
Frequently Asked Questions About ASTM A307 Bolts
What is ASTM A307 bolt material?
ASTM A307 specification is set on all-standardized carbon steel bolts and studs of diameter between 1/4 inch and 4 inch. They are typical clamp types regularly made of A36 round bar material. The specification has three grades of A, B, C, though Grade C has been mostly superseded by ASTM F1554 Grade 36, which describe the tensile strength needed by the fastener, its arrangement and its purpose.
What is A307 Grade A equivalent to?
ASTM A307 Grade A bolts are rated as low- to medium-strength bolts that are capable of providing tensile strength ranging to 60,000 psi. They are typically utilized in the general and non-critical applications and are similar to SAE J429 Grade 2 specification.
What is the difference between A325 and A307 bolts?
The essence of difference between the ASTM A307 and ASTM A325 bolts is associated with the strength needed and the importance of application. A307 bolts are not intended to be used in heavier or dynamic loads in general, non-critical applications such as simple construction hardware, anchor bolts or sign supports, as they do not need to be highly strong. A325 bolts on the other hand are bolts that are high-quality fastening items and which are specifically designed to serve purposes in which structural integrity and engineered performance are critical like steel structures, large-scale infrastructure and load-bearing connectors.
