ASTM F3125 Specification
ASTM F3125 is the integrated specification of High Strength Structural Bolts that are made from steel and alloy steel. This single standard now consolidates and replaces 6 previous ASTM specifications of bolts between 1/2 in to 1-1/2 in diameter: A325, A325M, A490, A490M, F1852, and F2280. The F3125 standard defines the chemical, physical and mechanical requirements of structural bolts across two grades of strengths, two styles, and two types. A key change is that structural bolts previously covered by A325 ranging from 1-1/8” to 1-1/2” now have the same mechanical property requirements as those 1” and under, eliminating the slightly lower requirements previously applied to larger diameters.
ASTM F3125 Bolts Grades
ASTM F3125 High-Strength Structural Bolts Manufacturer & Supplier in India
As a top ASTM Fasteners manufacturer and a reliable supplier in India, we are offering ASTM F3125 High-Strength Structural Bolts. This standard unified the requirements formerly present in A325 and A490 and provides high quality in the key structural connections. We also provide a complete variety of sizes and grades as specified by F3125 that can comply with the very stringent chemical and mechanical characteristics of high-strength steel and alloy steel bolting. Contact us now to receive a reliable supply and price.
Looking to buy Alloy Steel Fasteners?
Check price of ASTM A563 Nuts, ASTM A320 & ASTM A320 L7 Bolts
Weight Calculator
Quick Section Links
- ASTM F3125 Types
- ASTM F3125 Bolts Specifications
- ASTM F3125 Nuts Chemical Composition
- ASTM F3125 Bolts Mechanical Properties
- Hardness Requirements of ASTM F3125 Bolts
- ASTM F3125 Bolt Dimensions
- ASTM F3125 Bolts Torque Chart
- ASTM F3125 Bolts Inventory
- Available Stock of ASTM F3125 Bolts
- Applications of ASTM F3125 Bolts
ASTM F3125 Types
| Grade | Min Strength, Tensile Stress | Type | Bolt Style |
|---|---|---|---|
| A325 | 120ksi min | 1 or 3 | Heavy Hex Head |
| A325M | 830MPa min | 1 or 3 | Heavy Hex Head |
| F1852 | 120ksi min | 1 or 3 | Twist-Off/TC |
| A490 | 150-173ksi | 1 or 3 | Heavy Hex Head |
| A490M | 1040MPa | 1 or 3 | Heavy Hex Head |
| F2280 | 150ksi | 1 or 3 | Twist-Off/TC |
|
|||
ASTM F3125 Bolts Specifications
| Category | Details |
| Size Range | Size: M2 – M110 |
| Length: 12 – 1200 MM | |
| Diameter: ¼” – 1 ½” | |
| ASTM Standard | ASTM F3125 |
| Thread Types Available | Metric, Metric Course, UNF, Metric Fine, BA, BSF, UNC, UN8, BSW |
“Contact Jade Special Metals today with your requirement for ASTM F3125 Bolts. We assure you of the best quote.
ASTM F3125 Nuts Chemical Composition
| Heat Analysis | 120 ksi / 830 MPa Minimum | 150 ksi / 1040 MPa Minimum | |||
| Type 1Carbon or Alloy Steel with or without Boron | Type 3Composition A | Type 3Composition B | Type 1Alloy Steel with or without Boron | Type 3Based on Corrosion Indexᶜ | |
| Carbon | 0.30 – 0.52 | 0.33 – 0.40 | 0.38 – 0.48 | 0.30 – 0.48ᴬ | 0.30 – 0.53 |
| Manganese | 0.60 min | 0.90 – 1.20 | 0.70 – 0.90 | 0.60 min | 0.60 min |
| Phosphorus, max | 0.035 | 0.035 | 0.035 | 0.035 | 0.035 |
| Sulfur, max | 0.040 | 0.040 | 0.040 | 0.040 | 0.040 |
| Silicon | 0.15 – 0.30 | 0.15 – 0.30 | 0.30 – 0.50 | B | B |
| Boron | 0.003 max | B | B | 0.003 max | B |
| Copper | B | 0.25 – 0.45 | 0.20 – 0.40 | B | 0.20 – 0.60 |
| Nickel | B | 0.25 – 0.45 | 0.50 – 0.80 | 0.20ᴰ min | 0.20ᴰ min |
| Chromium | B | 0.45 – 0.65 | 0.50 – 0.75 | 0.45 min | 0.45 min |
| Vanadium | B | B | B | B | B |
| Molybdenum | B | B | 0.06 max | 0.10ᴰ min | 0.10ᴰ min |
| Titanium | B | B | B | B | B |
ASTM F3125 Bolts Mechanical Properties
|
Grade |
Tensile, ksi |
Yield, ksi min |
Elongation, % min |
RA, % min |
|
120ksi (A325/F1852) |
120 min |
92 |
14 |
35 |
|
150ksi (A490/F2280) |
150-173 |
130 |
14 |
40 |
Hardness Requirements of ASTM F3125 Bolts
| Diameter | Length | 120 ksi / 830 MPa Tensile (A325, A325M, F1852) | 150 ksi / 1040 MPa Tensile (A490, A490M, F2280) | ||||
| Brinell HB | Rockwell HRC | Brinell HB | Rockwell HRC | ||||
| Min | Max | Min | Max | Min | Max | ||
| Up to 1 in. Inclusive | Less than 2D | 253 | 319 | 25 | 34 | 311 | 352 |
| 2D and longer | … | 319 | … | 34 | … | 352 | |
| Over 1 in. | Less than 3D | 253 | 319 | 25 | 34 | 311 | 352 |
| 3D and longer | … | 319 | … | 34 | … | 352 |
ASTM F3125 Bolt Dimensions
Get accurate ASTM F3125 bolt dimensions and ASTM F3125 bolts sizes for both 120 ksi and 150 ksi tensile strength categories, including details on nut and washer requirements, thread fit, grade markings, and suitable alternatives for various applications.
120 ksi Min Tensile
Heavy Hex Bolts – Dimensions & Requirements (Inch)
| Category | Type 1 | Type 3 | Recommended Nut & Washer | Type 1 | Type 3 |
| Dimensions, ASME | B18.2.6 | B18.2.6 | Plain Nut | A563 DH | A563 DH3 |
| Thread Fit, ASME | B1.1 UNC 2A | B1.1 UNC 2A | Suitable Alternative | DH3, D, C, C3 | C3 |
| Grade Marking | A325 | A325 | Coated Nut | A563 DH | A563 DH3 |
| Washer | … | … | Flat, Bevel or Thick Washer if used | F436-1 | F436-3 |
150 ksi Min Tensile
Heavy Hex Bolts – Dimensions & Requirements (Inch)
| Category | Type 1 | Type 3 | Recommended Nut & Washer | Type 1 | Type 3 |
| Dimensions, ASME | B18.2.6 | B18.2.6 | Plain Nut | A563 DH | A563 DH3 |
| Thread Fit, ASME | B1.1 UNC 2A | B1.1 UNC 2A | Suitable Alternative | … | … |
| Grade Marking | A490 | A490 | Coated Nut | A563 DH | A563 DH3 |
| Washer | … | … | Flat, Bevel or Thick Washer if used | F436-1 | F436-3 |
ASTM F3125 Bolts Torque Chart
| Bolt Size | TPI | Tension Min | Tension Max | Torque (ft-lbs) Galv+Waxed (Min-Max) | Torque (ft-lbs) Plain (Min-Max) |
| ½ | 13 | 12,000 | 14,000 | 50 – 58 | 100 – 117 |
| ⅝ | 11 | 19,000 | 23,000 | 99 – 120 | 198 – 240 |
| ¾ | 10 | 28,000 | 34,000 | 175 – 213 | 350 – 425 |
| ⅞ | 9 | 39,000 | 47,000 | 284 – 343 | 569 – 685 |
| 1 | 8 | 51,000 | 61,000 | 425 – 508 | 850 – 1,017 |
| 1⅛ | 7 | 64,000 | 77,000 | 600 – 722 | 1,200 – 1,444 |
| 1¼ | 7 | 81,000 | 98,000 | 844 – 1,021 | 1,687 – 2,042 |
| 1⅜ | 6 | 97,000 | 117,000 | 1,111 – 1,341 | 2,223 – 2,681 |
| 1½ | 6 | 118,000 | 143,000 | 1,475 – 1,788 | 2,950 – 3,575 |
ASTM F3125 Bolts Inventory

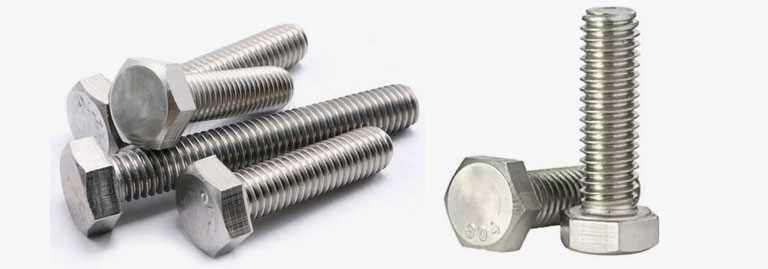

ASTM F3125 Bolts
ASTM F3125 Stud Bolts
ASTM F3125 Hex Bolts
Available Stock of ASTM F3125 Bolts
- AISI 4140 Carriage Bolt
- ASTM F3125 SS Step Bolt
- AISI 4140 ASTM F3125 Self locking Bolts
- ASTM F3125 Lag Bolt
- ASME SF 3125 Eye Bolt
- Stainless Steel Shoulder Bolt
- ASME SF 3125 Castle Bolts
- ASME SF 3125 SS J-Bolts
- ASTM F3125 SS Hex Head Bolt
- ASME SF 3125 Hex Domed Cap Nuts
- ASTM F3125 Foundation Bolts
- ASTM F3125 Stud Bolts
- ASTM F3125 Locking Bolts
- ASTM F3125 SS Elevator Bolt
- ASTM F3125 Stove Bolt
- ASTM F3125 Serrated Flange Bolts
- ASTM F3125 Counter sunk Bolt
- ASTM F3125 Hex Bolt
- Stainless Steel Stud Bolts
- ASTM F3125 Structural Bolts
- Stainless Steel Mushroom Head Square Neck Bolts
- ASME SF 3125 Nylon Insert Bolts
- ASTM F3125 U Bolt
- ASTM F3125 T-Head Bolts
- ASTM F3125 Hex Head Bolts
- ASME SF 3125 Round Head Bolts
- ASME SF 3125 Anchor Bolts
Applications of ASTM F3125 Bolts
