Hastelloy C276 Sheets & Plates, Hastelloy C276 Sheets, Hastelloy C276 Plates, ASTM B575 UNS N10276 Hastelloy C276, Alloy C276 Sheet & Alloy C276 Plate Manufacturer & Supplier in India
Jade Special Metals is a leading supplier, manufacturer, and exporter of Hastelloy C276 Sheets & Plates in India. We offer a wide range of sizes and forms that meet demanding industry needs and are certified to international standards like ASTM B575. We maintain a full stock of both Hastelloy C276 Sheets and Hastelloy C276 Plates.
What is Hastelloy C276 (UNS N10276 / ASTM B575 Alloy C276)?
Hastelloy C276, also designated as UNS N10276, is a nickel–molybdenum–chromium superalloy with excellent resistance to both oxidizing and reducing media. Known for its superior corrosion and oxidation resistance, this Alloy C276 material performs exceptionally well in aggressive chemical environments containing ferric and cupric chlorides, hot contaminated media, or seawater. The alloy’s low carbon content minimizes carbide precipitation during welding, ensuring outstanding weld integrity without the need for post-weld heat treatment.
Engineered to meet ASTM B575 / ASME SB575 specifications, Hastelloy C276 Sheets & Plates deliver remarkable strength, durability, and formability. They resist localized corrosion such as pitting, crevice attack, and stress corrosion cracking, making them a preferred material in industries handling acids, alkalis, and chlorides.
This alloy finds extensive use in chemical processing, pulp and paper production, pollution control, and marine applications where conventional stainless steels fail. At Jade Alloy, we are a leading supplier, manufacturer, and exporter of Hastelloy C276 Sheets & Plates, offering both hot-rolled and cold-rolled forms, as well as coils and foils. Our inventory covers thicknesses from 0.1 mm to 12 mm, ensuring a reliable supply of Alloy C276 Sheets and Plates tailored to meet demanding industrial standards and project requirements worldwide.
Quick Section Links
- Hastelloy C276 Sheets & Plates Specifications
- Hastelloy C276 Sheets & Plates Equivalent Standard Grade
- Hastelloy C276 Sheets & Plates Inventory
- Hastelloy C276 Sheets & Plates Chemical Composition
- Hastelloy C276 Sheets & Plates Mechanical Properties
- Hastelloy C276 Sheets & Plates Dimensions
- Manufacturing Process of Hastelloy C276 Sheets & Plates
- Available Stock of ASTM B575 Hastelloy C276 Sheets & Plates
- Applications of Hastelloy C276 Sheets & Plates
Hastelloy C276 Sheets & Plates Specifications
| Standard: | ASTM B575 / ASME SB575 |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness: | 0.3 mm to 120 mm |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface: | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Form: | Sheets, Plates, Coils, Slatting Coils, Perforated Coils |
| Finish: | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
“Contact Jade Special Metals today with your requirement for Hastelloy C276 Sheet and Alloy C276 Plates. We assure you of the best quote.
Hastelloy C276 Equivalent Grades
Hastelloy C276 is known by several equivalent international standard grades, reflecting its widespread use in global industries. The table below provides a cross-reference for these common designations.
| Standard | W.Nr. | UNS | JIS | EN | GOST |
| Hastelloy C276 | 2.4819 | N10276 | NW 0276 | NiMo16Cr15W | ЭП760ХН65МВУ |
Hastelloy C276 Sheets & Plates Inventory

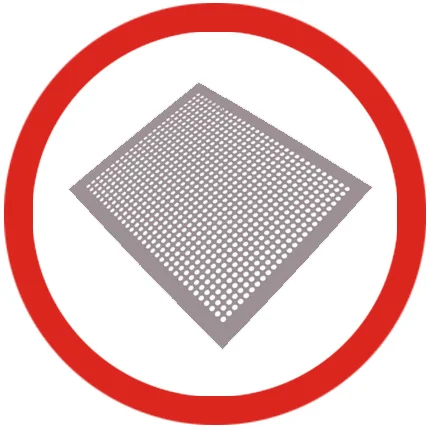

Hastelloy C276 Perforated Sheets

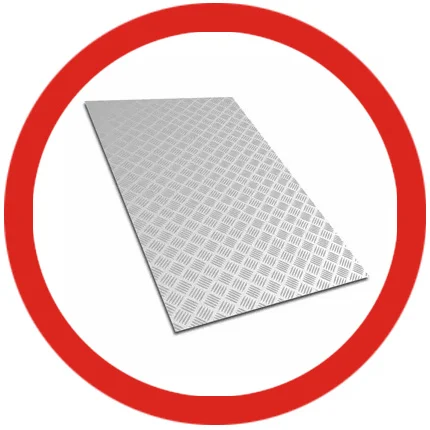

Hastelloy C276 Chequred Plates

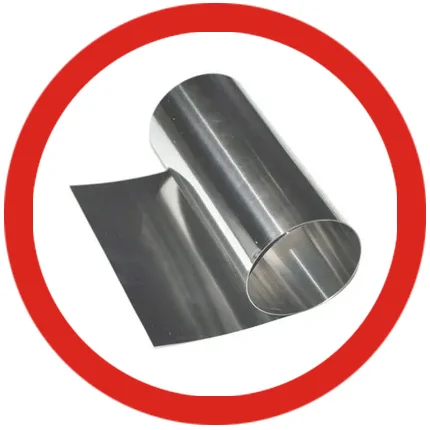

Hastelloy C276 Shim Sheets

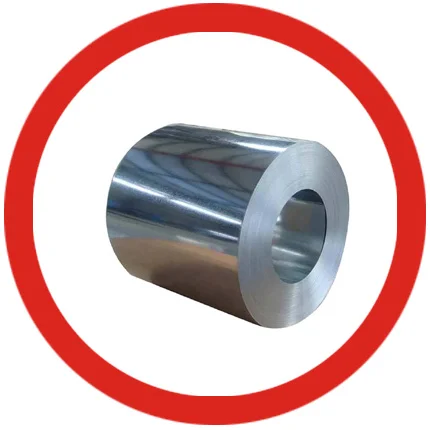

Hastelloy C276 Coils
Hastelloy C276 Foils
Hastelloy C276 Strips
Hastelloy C276 Sheets & Plates Chemical Composition
The exceptional performance of UNS N10276 is due to its carefully controlled chemical composition. The presence of nickel, molybdenum, and chromium gives it outstanding corrosion resistance in a variety of aggressive environments.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelly C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 15.00 – 17.00 | 0.04 max | 4.00 – 7.00 |
Hastelloy C276 Sheets & Plates Mechanical Properties
The mechanical properties of Hastelloy C276 Sheets & Plates demonstrate its durability and strength. These characteristics ensure reliable performance under high stress and temperature, making it suitable for critical applications.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
HASTELLOY C276 SHEETS & PLATES PRICE LIST
Request the latest Hastelloy C276 Sheets & Plates Price List. Please Call +91 9987685906 or Send an Email to [email protected] for Hastelloy UNS N10276, 2.4819 Sheets & Plates ready stock information and updated price list.
Manufacturing Products
We produce precision engineered components to global standards.
On Time Delivery
Strong logistics chain ensures committed lead times.
Competitive Pricing
Best value with zero compromise in quality or performance.
Hastelloy C276 Sheets & Plates Dimensions
We supply Hastelloy C276 Sheets & Plates in a wide range of standard and custom dimensions to meet your project’s specific needs. The following table provides a reference for common thicknesses available.
| Thickness (mm) | Thickness (inches) |
| 0.4 mm | 0.01575″ |
| 0.5 mm | 0.01969″ |
| 0.7 mm | 0.02756″ |
| 0.8 mm | 0.0315″ |
| 1.0 mm | 0.03937″ |
| 1.2 mm | 0.04724″ |
| 1.6 mm | 0.06299″ |
| 2.0 mm | 0.07874″ |
| 3.0 mm | 0.1181″ |
| 4.0 mm | 0.1575″ |
| 5.0 mm | 0.1969″ |
| 6.0 mm | 0.2362″ |
| 8.0 mm | 0.315″ |
| 10.0 mm | 0.3937″ |
Manufacturing Process of Hastelloy C276 Sheets & Plates
- Melting & Casting: The raw alloy is first melted and then cast into ingots.
- Hot Rolling: The ingots are hot rolled to reduce thickness and refine the grain structure.
- Cold Rolling: Subsequent cold rolling is performed to achieve the final dimensions and a superior surface finish.
- Heat Treatment: The material undergoes a final solution heat treatment and quenching to optimize its corrosion resistance and mechanical properties.
Testing and Quality Inspection of Hastelloy C276 Sheets & Plates
These comprehensive tests validate the mechanical strength and corrosion resistance of Alloy C276 Sheets & Plates, ensuring every product meets international quality benchmarks before dispatch.

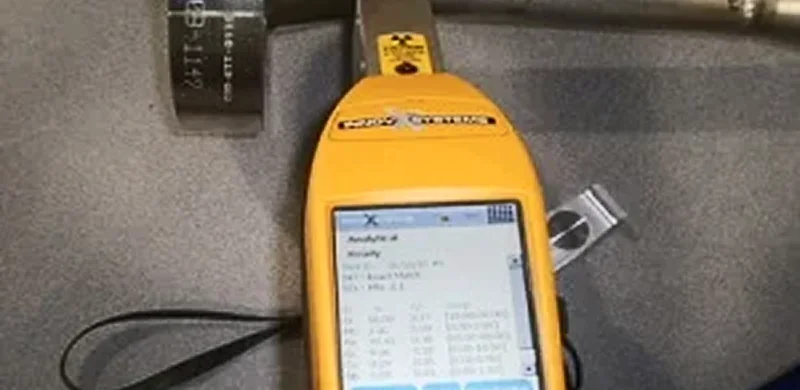

- Positive Material Identification (PMI) Testing
- Chemical Analysis – Spectro Analysis
- Mechanical Testing: Tensile, Elongation, Reduction of Area
- Micro Test
- Macro Test
- Hardness Test
- Pitting Resistance Test
- Intergranular Corrosion (IGC) Test
- Flaring Test
- Flattening Test
- Hydrostatic Test
- Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
- Sulfide Stress Corrosion Cracking (SSC), NACE TM0177
- Radiography Test
- Dye Penetrant Test (DP)

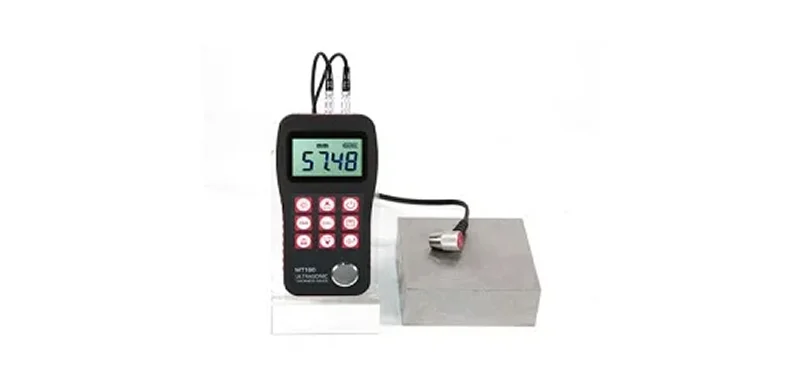

- Ultrasonic Test (UT)
- Eddy Current Testing
- Impact Test
- Bend Test
Available Stock of ASTM B575 Hastelloy C276 Sheets & Plates
- Hastelloy C276 Shim Sheets
- Alloy C276 Circles
- C276 Hastelloy Plain Sheets
- C276 Hastelloy Alloy Foils
- UNS N10276 Polished Plates
- WERKSTOFF NR. 2.4819 Perforated Sheet
- ASTM B575 C276 Hastelloy Sheet
- Hastelloy C276 Sheet Cut To Size
- Hastelloy C276 Sheet #4 Finish
- Alloy C276 Cold Rolled Plates
- ASTM B575 Type C276 Plate 2B Finish
- C276 Hastelloy Plate Mill Finish
- UNS N10276 Plates
- WERKSTOFF NR. 2.4819 Shim Sheets
- ASTM B575 Alloy C276 Coils
- ASTM B575 Alloy C276 Slitting Coil
- Hastelloy C276 CR Sheet
- Hastelloy Alloy C276 Strips
- C276 Hastelloy #4 Finish Sheets
- C276 Hastelloy Alloy Foils
- UNS N10276 Sheet Supplier
- WERKSTOFF NR. 2.4819 HR Plates
- C276 Hastelloy Sheet
- Alloy C276 #8 Finish Plates
- Hastelloy® Alloy C276 Plate Manufacturer
- C276 Hastelloy Laser Cutting Sheet
- Hastelloy C276 Sheets
- C276 Hastelloy Sheets Distributor
- UNS N10276 Plates Exporter
- WERKSTOFF NR. 2.4819 CR Sheets
- ASTM B575 Type C276 Sheet and Plate
- ASTM B575 C276 Hastelloy Plate
- 2.4819 Hastelloy Perforated Sheet
- Alloy C276 2B Finish Plates Stockist
- Hastelloy® Alloy C276 Sheets
- Hastelloy C276 Sheets Price
Applications of Hastelloy C276 Sheets & Plates
- Pipeline Engineering
- Marine Industry
- Chemical Industry
- Oil & gas industry
- Mechanical Engineering
- Plant Engineering
- Petrochemical Industry
- Power Industry
- Aerospace
- Food Processing Industry
Get a Competitive Price for Hastelloy C276 Sheets & Plates
To receive a competitive and detailed quote for Hastelloy C276 Sheets & Plates, please contact us with your specific requirements. We will provide pricing based on the dimensions, quantity, and grade you need, ensuring you get the best value for your project. Our team is ready to assist you with any inquiries and help you place an order.
