Nickel plates, made from nickel-based alloys, are highly valued for producing high-quality plates due to their exceptional properties. Nickel sheets are notable for combining high creep resistance at elevated temperatures with purity, resulting in a powerfully ductile material. Additionally, nickel plate exhibits low annealed rigidity and an extremely slow rate of work-hardening. Nickel coils are specifically chosen for applications above 315 Degree C because of their enhanced resistance to “creep.” Furthermore, nickel rolling sheets are known for their excellent corrosion resistance. A wide array of nickel strips is supplied for use in the most demanding environments, including chemical processing, pollution control, pulp and paper production, industrial and municipal waste treatment, and sour natural gas recovery. The specified standards for nickel plate govern a set of general requirements applicable to plate, sheet, coil, and strip
Nickel Shim Sheets, ASTM B162 Nickel Alloy Plates, Nickel Sheets, Nickel Alloy Plates, Nickel Cold Rolled Sheets, Nickel Perforated Sheets, Nickel Shim Sheets, Nickel Coils, Nickel Sheets Manufacturer in Mumbai, India.
Jade Alloys is a prominent and leading player in the market, specializing as a nickel alloy sheets & plates supplier in India. We offer a diverse range of specifications for these products at competitive prices. Our commitment to quality ensures that we produce these nickel sheets and plates in various grades, shapes, and sizes, allowing our customers to acquire materials necessary for manufacturing their own high-quality products. By maintaining superior quality and focusing on efficiency, we are able to offer these essential products to our clients at the best possible price with minimal maintenance requirements. Jade Alloys prioritizes customer satisfaction, aligning our operations with customer needs and staying current with the latest market trends.

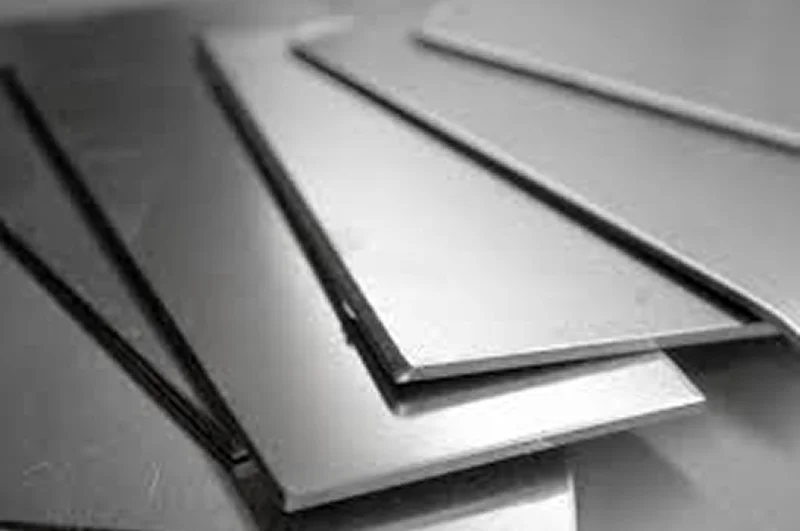

Looking to buy Nickel 200 Sheets & Plates?
Check Nickel Alloy Sheets & Plates Price in India
Weight Calculator
Table of Contents
- Nickel Sheets & Plates Grades
- Nickel Sheets & Plates Specification
- Nickel Alloy Sheets & Plates Chemical Composition
- Nickel Plates, Nickel Sheets & Coils Mechanical Properties
- Equivalent Grades for Nickel Sheets & Plates
- Nickel Plates Sizes
- Nickel Plate Dimensions
- Types of Nickel Sheets & Plates
- Applications of Nickel Alloys Sheets & Plates
- Nickel Sheets & Plates Price in India
Nickel Sheets & Plates Grades
Nickel Sheets & Plates Specification
Refer to the following table for the detailed specifications of Nickel Sheets and Plates.
| Grade | Nickel 200 (UNS N02200) / Nickel 201 (UNS N02201) / Nickel 205 (UNS N02205) |
|---|---|
| Standards | ASTM, ASME, API |
| Specialize | Shim Sheet, Perforated Sheet, B. Q. Profile |
| Width | 1000 mm to 2500 mm |
| Thickness | 0.5 mm to 200 mm |
| Specifications | ASTM B 162 / SB 162 |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled (HR), Cold rolled (CR), 2B, 2D, BA NO(8), SATIN (With Plastic Coated) |
Nickel Alloy Sheets & Plates Chemical Composition
The chemical composition for various grades of Nickel Plates is detailed below.
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|
| N4 | 99.99 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| N6 | 99.6 | 0.10 | 0.10 | 0.05 | 0.10 | 0.10 | 0.005 | 0.002 | 0.10 |
| Ni201 | 99.0 | ≤0.25 | ≤0.35 | ≤0.35 | ≤0.02 | / | ≤0.01 | / | ≤0.40 |
| Ni200 | 99.0 | 0.20 | 0.30 | 0.30 | 0.15 | / | 0.01 | / | 0.40 |
Nickel Plates, Nickel Sheets & Coils Mechanical Properties
These are the key mechanical and physical properties of Nickel Plates, Sheets, and Coils.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|---|---|---|
| Nickel | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
Equivalent Grades for Nickel Sheets & Plates
The following table provides the equivalent international standard grades for Nickel 200 and Nickel 201.
| STANDARD | UNS | AFNOR | BS | GOST | WERKSTOFF NR. | EN | JIS |
|---|---|---|---|---|---|---|---|
| Nickel 200 | N02200 | N-100M | NA 11 | НП-2 | 2.4066 | Ni 99.2 | NW 2200 |
| Nickel 201 | N02201 | – | NA 12 | НП-2 | 2.4068 | LC-Ni 99 | NW 2201 |
Nickel Plates Sizes
Below are the stocked thicknesses (sizes) available for various Nickel Alloys, including Nickel 200/201.
| SIZE | NICKEL | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | ALLOY | SIZE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 200/1 | 400 | 600 | 601 | 625 | 718 | 800 | 825 | AL6XN | C276 | 20 | A286 | ||
| .125″ | X | X | X | X | X | X | X | X | X | X | X | X | 3.18mm |
| .134″ | X | 3.40mm | |||||||||||
| .156″ | X | X | X | X | X | X | X | 3.96mm | |||||
| .187″ | X | X | X | X | X | X | X | X | X | X | X | X | 4.75mm |
| .250″ | X | X | X | X | X | X | X | X | X | X | X | X | 6.35mm |
| .312″ | X | X | X | X | X | X | 7.92mm | ||||||
| .375″ | X | X | X | X | X | X | X | X | 9.53mm | ||||
| .500″ | X | X | X | X | X | X | X | X | X | X | X | X | 12.7mm |
| .625″ | X | X | X | X | X | X | X | X | X | 15.9mm | |||
| .750″ | X | X | X | X | X | X | X | X | X | 19.1mm | |||
| .875″ | X | X | X | 22.2mm | |||||||||
| 1″ | X | X | X | X | X | X | X | X | X | X | X | 25.4mm | |
| 1.125″ | X | 28.6mm | |||||||||||
| 1.250″ | X | X | X | X | X | X | X | 31.8mm | |||||
| 1.500″ | X | X | X | X | X | x | X | 38.1mm | |||||
| 1.750″ | X | 44.5mm | |||||||||||
| 2″ | X | X | X | x | 50.8mm | ||||||||
| 2.500″ | X | X | x | 63.5mm | |||||||||
| 3″ | X | 76.2mm |
Nickel Plate Dimensions
This table outlines the metric dimensions and corresponding surface finishes for Nickel Plates.
| Nickel Plate Metric Dimensions | ||
|---|---|---|
| Surface finish | Thickness (mm) | Width (mm) |
| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |
| Polished, brushed | 0.5–4.0 | max. 1524 |
Types of Nickel Sheets & Plates

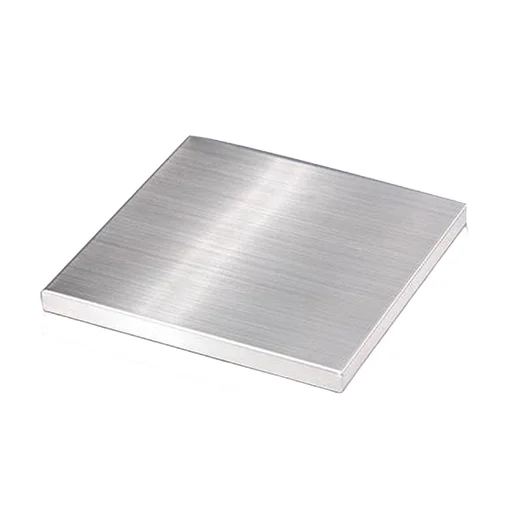

Nickel Plates

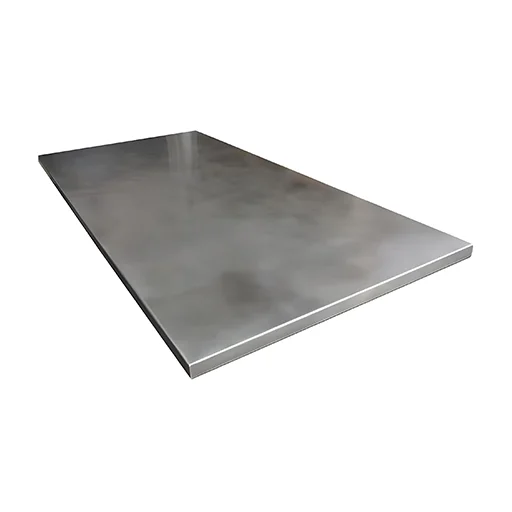

Nickel HR Plate

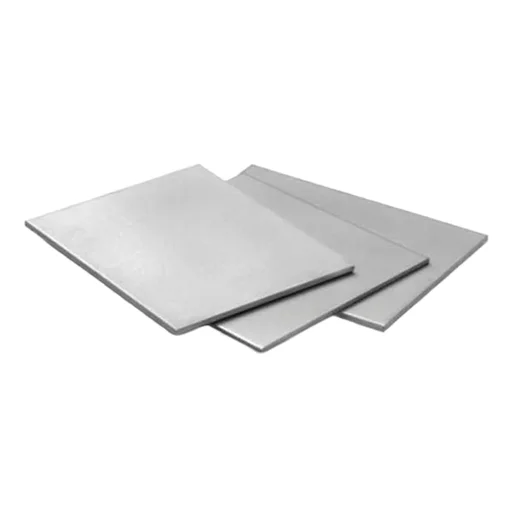

Nickel Alloy Plate

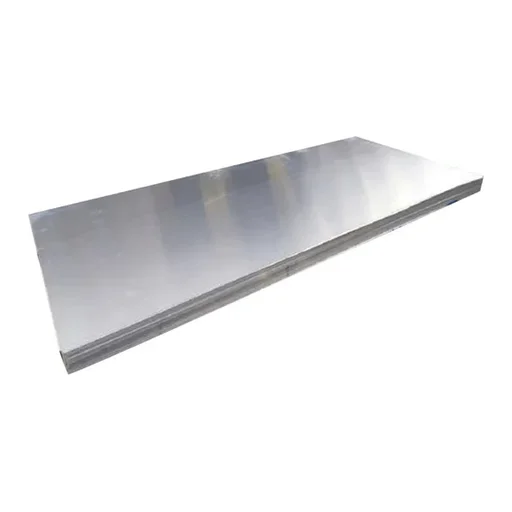

Nickel Alloy CR Plates

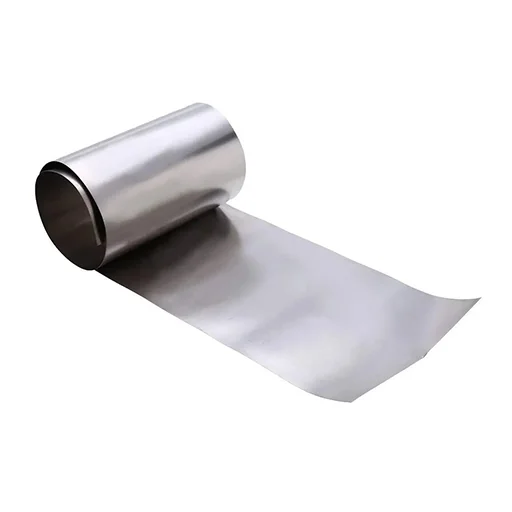

Nickel Shim Plates
Nickel Plates

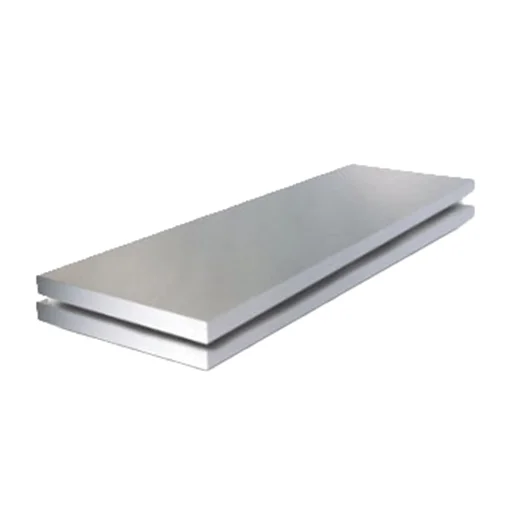

Nickel Sheets

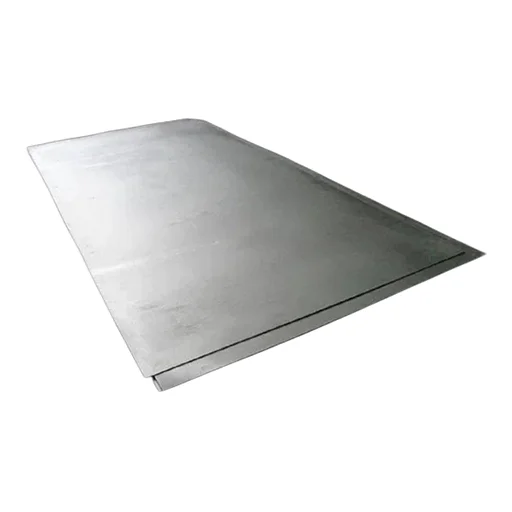

Nickel Alloy CR Sheets

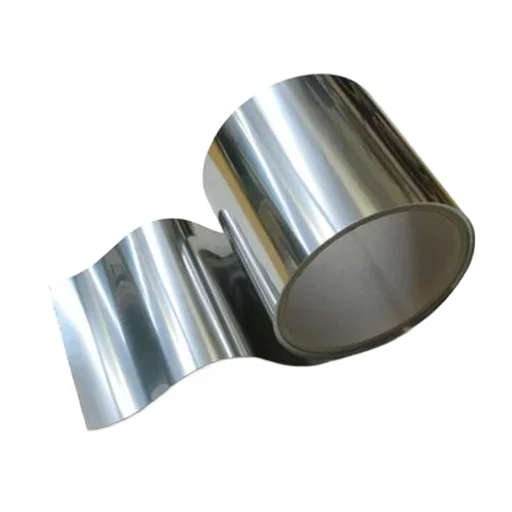

Nickel Shim Sheet
Nickel Sheets

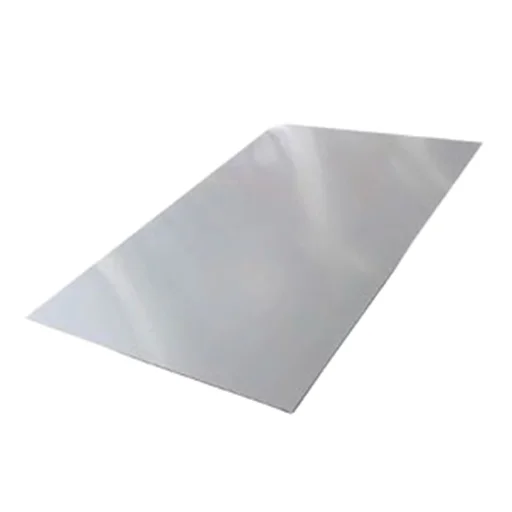

Nickel HR Sheet

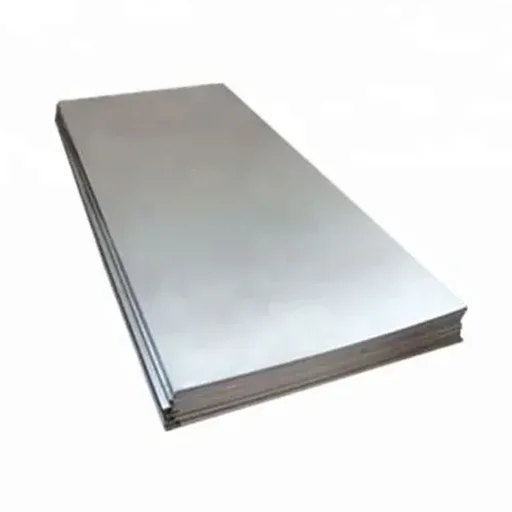

Nickel Alloy Sheet
What are the advantages of using nickel alloy plate?
Nickel alloy plates provide several key benefits over alternative materials. They are exceptionally strong and durable, enabling them to withstand significantly more wear and tear, making them perfectly suited for demanding industrial applications. Their inherent resistance to corrosion ensures high reliability, particularly in harsh environments like those involving saltwater. Furthermore, their high-temperature resistance makes them an excellent choice for use in high-stress, high-heat settings. Finally, nickel alloy plates are relatively lightweight considering their strength and durability, and they also offer significant thermal conductivity. This combination of versatile characteristics makes nickel alloy plates an ideal material for a wide array of applications.
What are the properties of nickel alloy?
A nickel alloy is a material composed of nickel combined with other elements, frequently including iron, chromium, molybdenum, and manganese. This specific elemental combination gives the alloy several unique characteristics. Nickel alloys are known for being highly corrosion-resistant and possessing superior strength compared to many other materials. They are also relatively malleable and ductile, which is crucial for intricate components like machine parts or turbine blades that require a good balance of compression strength and flexibility. Their low thermal expansion rates further enhance their suitability for many components used in harsher environments that are subject to fluctuating temperatures.
Applications of Nickel Alloys Sheets & Plates
Nickel Sheets & Plates Price in India
| Product Name | Price |
|---|---|
| Nickel HR Plates | US $800-3000 / Metric Ton (FOB Price) |
| Hot Rolled Nickel Plates | US $605-629 / Metric Ton (FOB Price) |
| Nickel Alloy Cold Rolled Sheets | US $800-4000 / Metric Ton (FOB Price) |
| Nickel Alloy Plates | US $500-800 / Metric Ton (FOB Price) |
| Nickel Alloy CR Sheets | US $560-670 / Ton (FOB Price) |
| Nickel® Alloy HR Plates | US $500-900 / Ton (FOB Price) |
Please note: Price is subject to change without any prior notice.
Frequently Asked Questions About Stainless Steel Plates & Sheets
The primary use of nickel plate is in manufacturing hard disk drives for computers. Beyond this major application, nickel plating is extensively used for the metallizing of plastics before electroplating and on various engineering products such as automotive brake cylinders, pumps, and valves. Electroless nickel plating is especially valued as it provides excellent wear and corrosion resistance along with outstanding adhesion to various metals.
The nickel sheets are usually used in the industries where the purity of the material and the convenience of forming is very crucial. Its most common uses are in chemical processing, electronics, and battery production. They are also important elements in the aerospace industry where their extreme purity and formability are paramount to different parts.
Nickel sheets are manufactured from pure nickel ingots or billets and can also be made from nickel alloys. They are thicker than nickel foil but thinner than nickel plates, with typical thickness dimensions ranging from 0.006 inches up to 0.250 inches.
